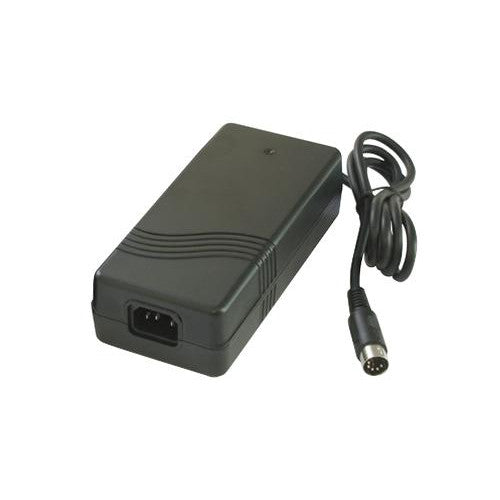

5V / 12V / -12V, 42W, 3 Output IEC Desktop Power Supply - AEH45UM31
5V / 12V / -12V, 42W, 3 Output IEC Desktop Power Supply - AEH45UM31
Regular price
£84.69 GBP
Regular price
Sale price
£84.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The AEH45UM31 is a 5V ±12V/42W 3-output 5-way DIN Desktop PSU with high power density. It features low profile, universal input, output 1 only 110 to 150% of nominal overload protection and 112 to 132% Vnom, auto reset overvoltage protection. This power supply output is fixed.
Product Info
- <0.5/<0.75mA at 115/230VAC Earth leakage current respectively
- Up to 80% efficiency
- 16ms Minimum hold up time
- 1% pk-pk Ripple and noise
- 0 to 60°C Operating temperature range
| Details | |
|---|---|
| Power Supply Approvals | ITE |
| No. of Outputs | 3 Output |
| Output Power Max | 42W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 5A |
| Output Voltage - Output 2 | 12V |
| Output Current - Output 2 | 2A |
| Output Connector | 5 Way DIN |
| Output Voltage - Output 3 | -12V |
| Output Current - Output 3 | 800mA |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | AEH Series |
| Plug Type | Mains Plug Sold Separately |
| Important Product Info: | Mains plug sold separately. |
| Country of Origin: | Taiwan |
