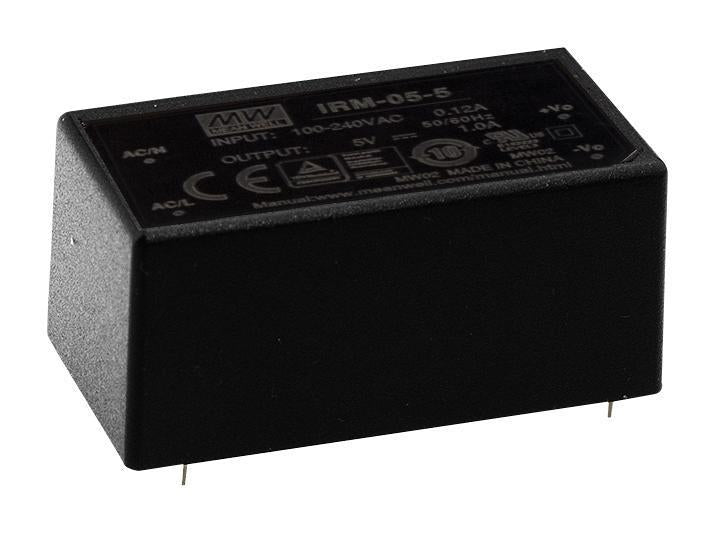

5V, 1A, 5W, PCB Mount AC to DC Power Supply - IRM-05-5
5V, 1A, 5W, PCB Mount AC to DC Power Supply - IRM-05-5
Regular price
£14.49 GBP
Regular price
Sale price
£14.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
IRM-05 series is a 5W miniature AC to DC module type power supply allows a universal input voltage range from 85VAC to 305VAC.
Features
- No load power consumption <0.1W
- Switching power supply
- Comply with EN55032 class B without any additional components
- Short circuit/overload/overvoltage protections
- Cooling by free air convection
- Isolation ClassII incorporating the built-in EMI filtering components
- High reliability
- With high efficiency up to 71%
| Specifications | |
|---|---|
| Power Supply Approvals | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 5W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 1A |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 264V AC |
| Width | 25.4mm |
| Height | 21.5mm |
| Depth | 45.7mm |
| Product Range | IRM-05 Series |
| Country of Origin: | China |
