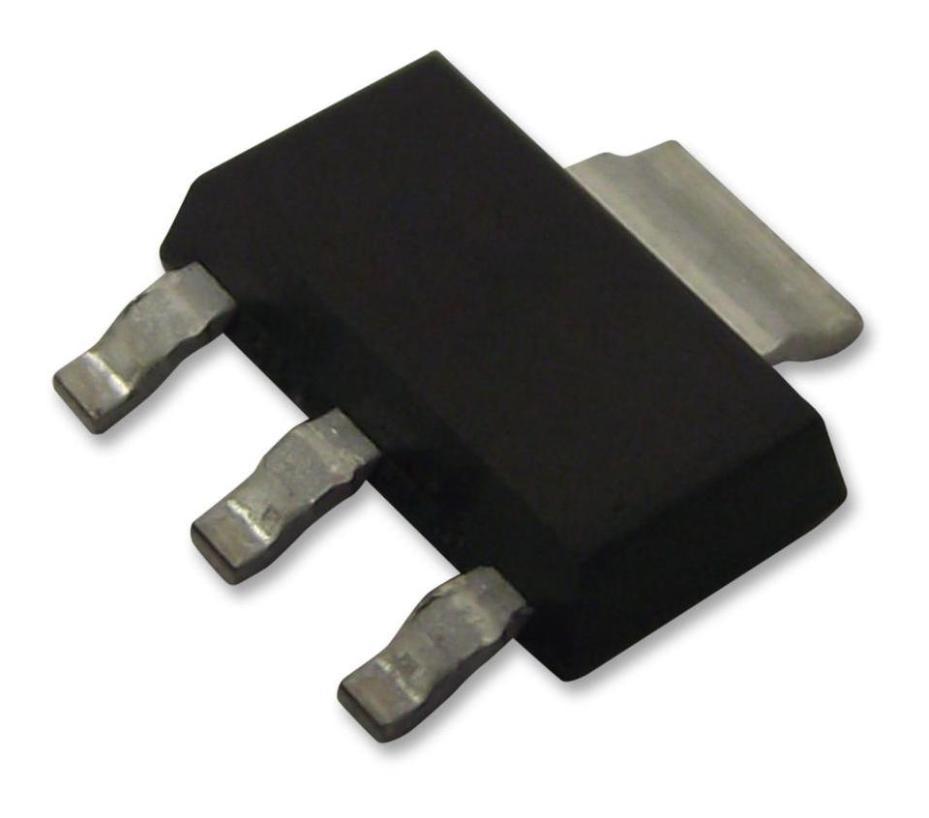

5V, 1A Low Dropout Voltage Regulator, SOT-223-3, 3.5V to 20V - NCP1117ST50T3G
5V, 1A Low Dropout Voltage Regulator, SOT-223-3, 3.5V to 20V - NCP1117ST50T3G
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The NCP1117ST50T3G series are low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy
Features
- Output current in excess of 1.0 A
- No minimum load requirement for fixed voltage output devices
- Reference/output voltage trimmed to ±1.0%
- Current limit, safe operating and thermal shutdown protection
- Operation to 20V input
| Specifications | |
|---|---|
| Output Type | Fixed |
| Input Voltage Min | 3.5V |
| Input Voltage Max | 20V |
| Fixed Output Voltage Nom. | 5V |
| Output Current | 1A |
| Dropout Voltage Vdo | 1.07V |
| LDO Regulator Case Style | SOT-223 |
| No. of Pins | 3Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 125°C |
| Product Range | 5V 1A LDO Voltage Regulators |
| Country of Origin: | Malaysia |
