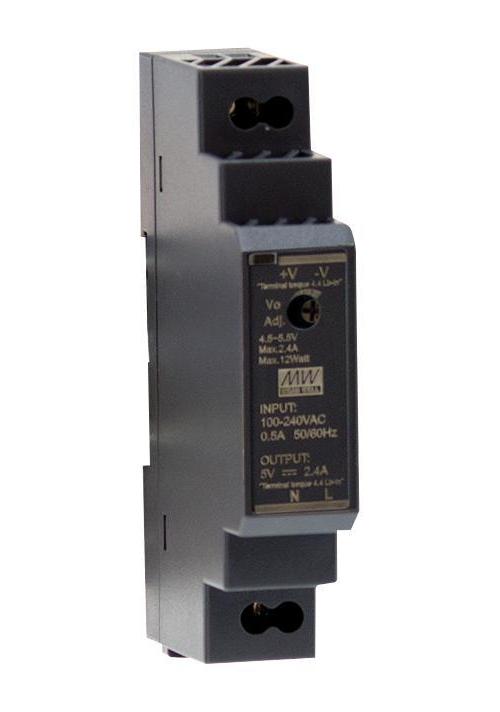

5V, 2.4A, 12W, AC/DC DIN Rail Power Supply - HDR-15-5
5V, 2.4A, 12W, AC/DC DIN Rail Power Supply - HDR-15-5
Regular price
£28.49 GBP
Regular price
Sale price
£28.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
HDR-15 series economical ultra slim 12-15.4W DIN rail power supply to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm in width which allows space saving inside the cabinets.
Features
- Short circuit, overload and over voltage protection
- Ultra-slim 17.5mm design
- LED Indicator for power on
- Adjustable DC Voltage output
- TS-35/7.5 or TS-35/15 Mountable
- Cool by free air convection
- LED indicator for power on
- Dimensions (HxWxD): 90 x 58.4 x 17.5mm
- No load power consumption<0.3W
| Specifications | |
|---|---|
| Power Supply Approvals | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 12W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 2.4A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | HDR-15 Series |
| Country of Origin: | China |
