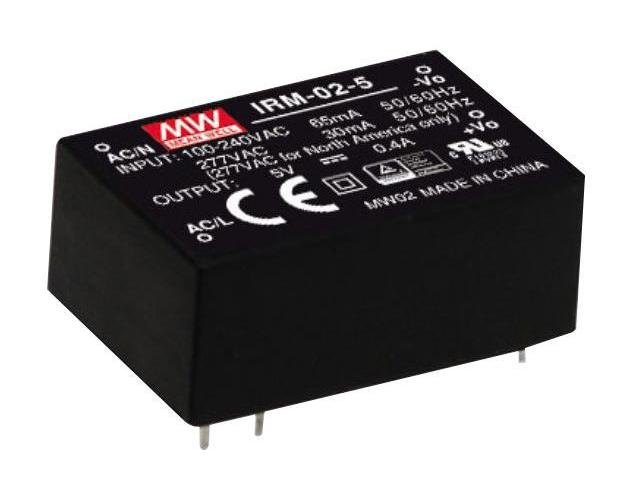

5V, 400mA, 2W PCB Mount AC to DC Power Supply - IRM-02-5
5V, 400mA, 2W PCB Mount AC to DC Power Supply - IRM-02-5
Regular price
£10.39 GBP
Regular price
Sale price
£10.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
IRM-02 series is a 2W miniature AC to DC module type power supply allows a universal input voltage range from 85VAC to 305VAC.
Features
- No load power consumption <0.75W
- Single output encapsulated type
- Comply with EN55032 class B without any additional components
- Short circuit/overload/overvoltage protections
- Cooling by free air convection
- Isolation ClassII incorporating the built-in EMI filtering components
- High reliability
- With high efficiency up to 70%
| Specifications | |
|---|---|
| Power Supply Approvals | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 2W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 400mA |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 305V AC |
| Width | 22.2mm |
| Height | 15mm |
| Depth | 33.7mm |
| Product Range | IRM-02 Series |
| Country of Origin: | China |
