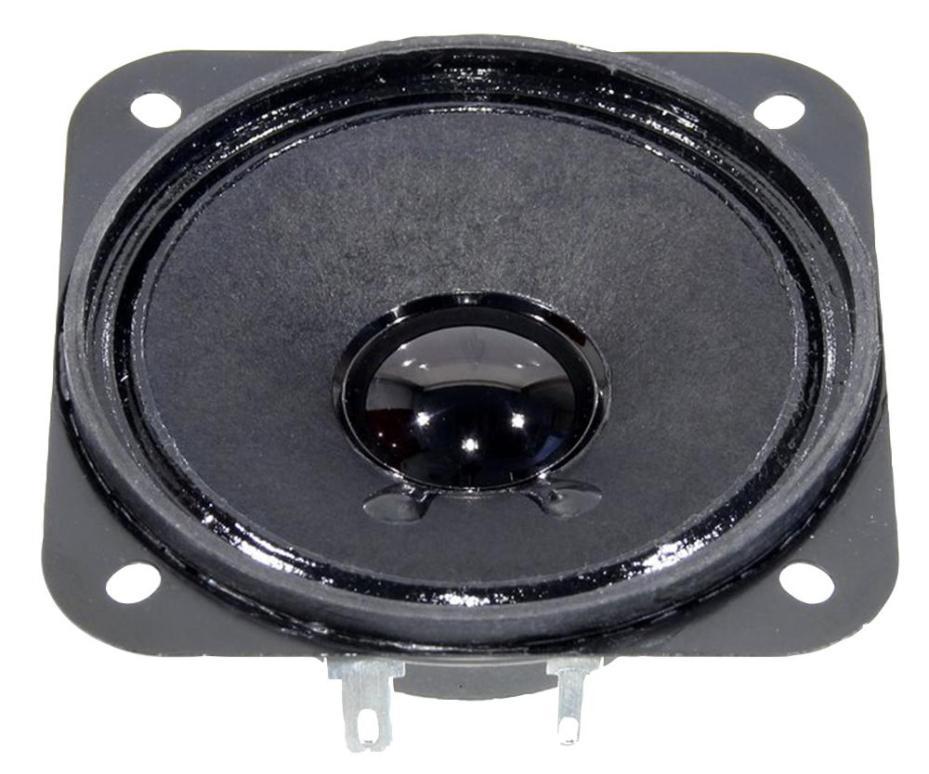

5W Full Range Driver 3" 8R/100V - FR 77, 8 OHM
5W Full Range Driver 3" 8R/100V - FR 77, 8 OHM
Regular price
£6.89 GBP
Regular price
Sale price
£6.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
7.7cm (3") full range speaker with balanced frequency response and high efficiency. Especially suitable as built-in speaker for speach- and music reproduction and as driver for 100 V network column speakers. Typical applications: Conference technology, network column speakers, multimedia application, communication technology.
Features
- Output power: 5W rms (max. 7W)
- Nominal impedance: 8R
- Frequency response: 150Hz to 20kHz
- Mean SPL: 87dB (1Wat 1m) max. 94dB
- Resonant frequency: 250Hz
- Cutout diameter: 71mm
- Mounting holes distance: 85mm
- Operating temperature: -20 to +70°C
- Dimensions (HxWxD): 77x77x34mm
- Weight: 150g
| Specifications | |
|---|---|
| Driver Type | Full-range |
| External Diameter - Metric | 77mm |
| External Width - Metric | 77mm |
| Impedance | 8ohm |
| Power Rating Nom | 5W |
| Sound Level SPL | 89dBA |
| External Diameter - Imperial | 3.031" |
| External Width - Imperial | 3.031" |
| Frequency Response Min | 150Hz |
| Frequency Response Max | 20kHz |
| Speaker Shape | Round with Square Frame |
| Resonant Frequency | 250Hz |
| Speaker Mounting | Through Hole |
| Power Rating Max | 7W |
| External Length - Metric | 77mm |
| External Depth - Metric | 34mm |
| External Length - Imperial | 3.031" |
| External Depth - Imperial | 1.339" |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
