5W5 Combination Power and Signal D Sub Socket, Vertical Solder Pins, 40A - MHCDD5W5S4

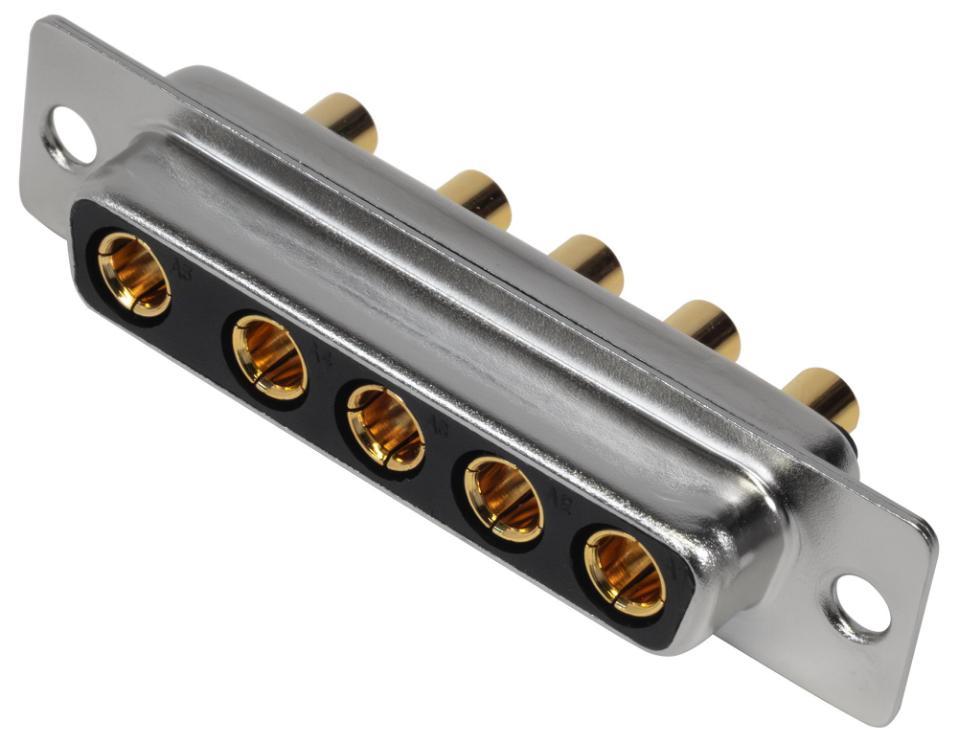

5W5 Combination Power and Signal D Sub Socket, Vertical Solder Pins, 40A - MHCDD5W5S4
Regular price
£10.99 GBP
Regular price
Sale price
£10.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
MH Connectors MHCD Series Combo D-Subs are designed for applications where both power and signal are required from a single connection. The metal shells provide full EMI/RFI shielding while the screw machined contacts make them ideal for applications where a reliable connection is crucial. The fully assembled connectors offer highly reliable performance.
Features
- All contacts are pre-loaded into the insulator
- Available in industry-standard contact configurations - 3W35W15W57W2
- Available with 20A or 40A power contacts, 5A signal contacts
- Options include solder cup, vertical DIP solder and right-angled DIP solder terminations
- UL94V-0 flammability
| Specifications | |
|---|---|
| Product Range | MHCD Series |
| Insert Arrangement | DB-5W5 |
| Gender | Receptacle |
| No. of Contacts | 5Contacts |
| Contact Type | 5 Power |
| Contact Termination Type | Solder |
| Connector Mounting | Through Hole Mount |
| Connector Body Material | Steel Body |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash Plated Contacts |
| Country of Origin: | Taiwan |
