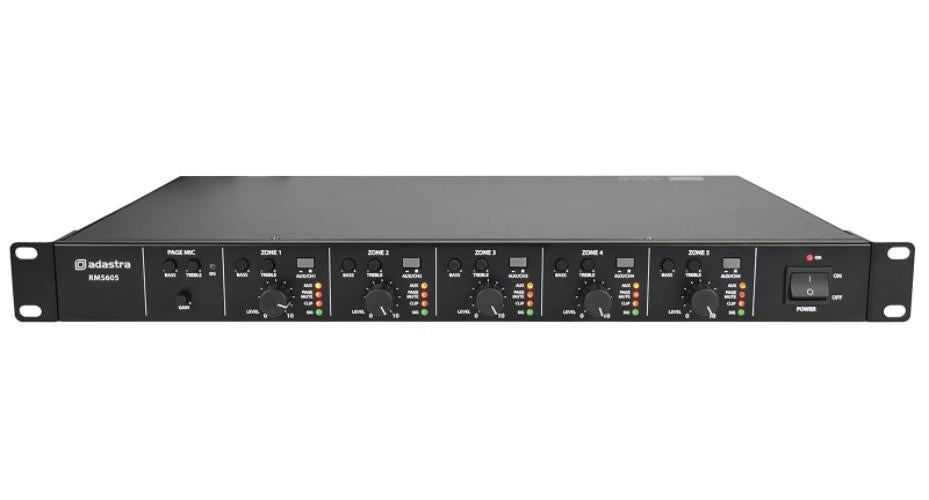

5x60W Class D Amplifier 100V/4R-16R, 953.152UK - RMS605
5x60W Class D Amplifier 100V/4R-16R, 953.152UK - RMS605
Regular price
£391.09 GBP
Regular price
Sale price
£391.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Multi-channel 100V slave amplifier with 5 x 60W outputs for 100V or 4R to 16R speakers. Each channel has its own independent line input, which can be switched to a global auxiliary providing the option to route the same input to several channels if required. A paging microphone input is always live to all channels for voice alerts. A 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack mounted housing. The RMS605 can be applied as a high power slave amplifier or equally as a fully independent zoning system for a multiroom installation.
Features
- 5x 60W Channels class D high efficiency amplifier
- Inputs: 1x XLR (Mic), 5x RCA L/R (Line), 1x AUX RCA L/R
- Outputs: 5x 100V, or 4R to 16R (Euroblock), 1x RCA (Signal)
- Output power per channel: 4R - 60W, 8R - 34W, 16R - 18W
- Paging microphone input with vox override and switchable phantom power
- 24V contacts for emergency muting
- Power supply: 170 to 264V AC, 50/60Hz (IEC) lead included
- Controls: Level, Bass, Treble, CH/AUX switch
- Dimensions (HxWxD): 43x483x330mm
- Weight: 8.17kg
| Specifications | |
|---|---|
| Product Range | ADASTRA 100V/4R-16R Amps |
| Plug Type | UK |
| Country of Origin: | China |
