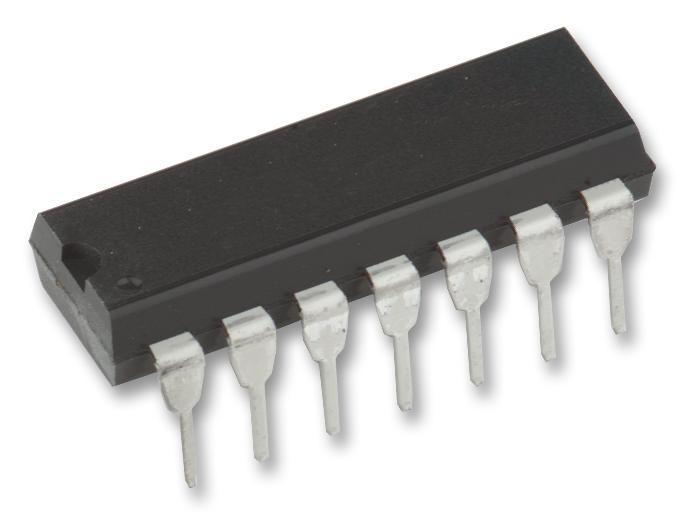

6 Channel 4.75V to 5.25V Bipolar Buffers with Schmitt Trigger Inputs, DIP14 - SN7417N
6 Channel 4.75V to 5.25V Bipolar Buffers with Schmitt Trigger Inputs, DIP14 - SN7417N
Regular price
£3.69 GBP
Regular price
Sale price
£3.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SN7417N is a Hex Buffer/Driver features high-voltage open-collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays) and also is characterized for use as buffers for driving TTL inputs. The SN7417 has minimum breakdown voltage of 15V. The maximum sink current is 40mA. This device perform Boolean function Y=A in positive logic. This circuit is completely compatible with most TTL families. Inputs are diode clamped to minimize transmission-line effects, which simplifies design. Typical power dissipation is 145mW and average propagation delay time is 14ns.
Features
- Convert TTL voltage levels to MOS levels
- High sink-current capability
- Input clamping diodes simplify system design
- Open-collector driver for indicator lamps and relays
- Inputs fully compatible with most TTL circuits
- 2V High-level input voltage
- 0.8V Low-level input voltage
| Specifications | |
|---|---|
| Logic Device Type | Buffer, Non Inverting |
| Logic Family / Base Number | TTL17 |
| Logic Case Style | DIP |
| No. of Pins | 14Pins |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Logic IC Family | TTL |
| Logic IC Base Number | 7417 |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | Malaysia |
