6 Channel, 4.75V to 5.25V Bipolar Inverters with Open Collector Outputs - SN74LS05N
6 Channel, 4.75V to 5.25V Bipolar Inverters with Open Collector Outputs - SN74LS05N
Regular price
£3.39 GBP
Regular price
Sale price
£3.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

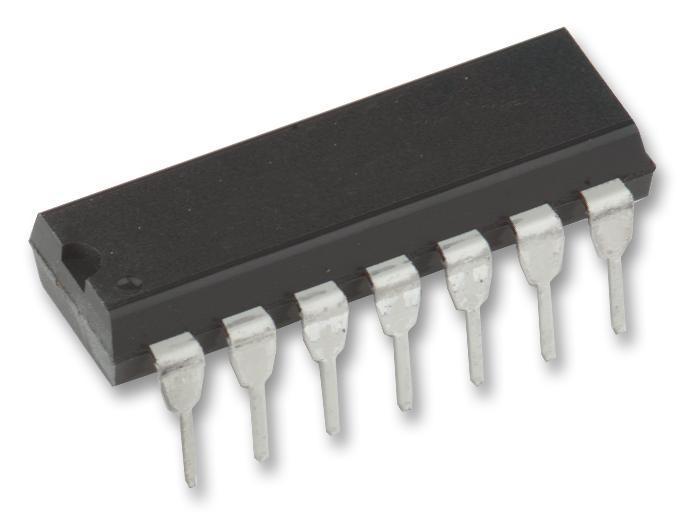

The SN74LS05N is a Hexagonal Inverter with open collector outputs, six independent inverters and LS technology. To perform correctly, the open-collector outputs require pull-up resistors. These devices may be connected to other open-collector outputs to implement active-low wired-OR or active-high wire-AND functions. Open-collector devices often are used to generate high VOH levels.
Features
- TTL input and CMOS output
| Specifications | |
|---|---|
| Logic Function | Inverter |
| No. of Elements | Hex |
| No. of Inputs | 1Inputs |
| No. of Pins | 14Pins |
| Logic Case Style | DIP |
| Product Range | 74LS05 |
| Logic IC Family | 74LS |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Schmitt Trigger Input | Without Schmitt Trigger Input |
| Output Current | 8mA |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | Malaysia |
