6 Conductor Triple Decker Through Terminal Block, Push In Cage Clamp, 35mm DIN Rail, 22AWG to 12AWG, 20A, Grey - 2002-3231

6 Conductor Triple Decker Through Terminal Block, Push In Cage Clamp, 35mm DIN Rail, 22AWG to 12AWG, 20A, Grey - 2002-3231

£4.99 GBP
£4.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

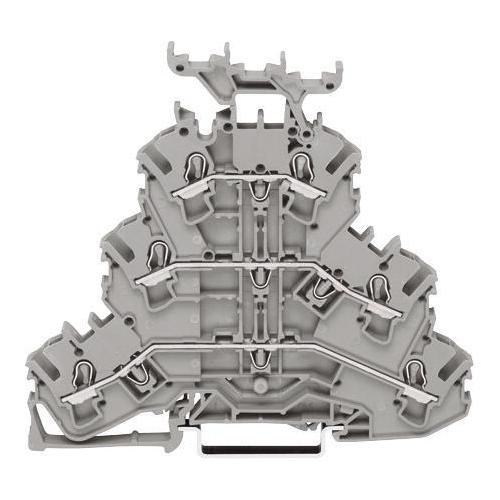

The 2002-3231 from Wago is a 6 Conductor triple decker through terminal block.

Features

  • DIN 35 rail-mounted terminal block with PUSH-IN CAGE CLAMP® technology
  • Significant cost savings through the reduction of panel space & faster installation
  • Push Button termination for simple faster installation
  • Top entry wiring
  • Screwless Connection

Specifications
No. of Positions 6Ways
Wire Size AWG Min 22AWG
Wire Size AWG Max 12AWG
Conductor Area CSA 4mm2
Wire Connection Method Clamp
Rated Current 20A
Rated Voltage 600V
No. of Levels 3
Product Range TOPJOB S 2002

EAN: 4044918989756
Manufacturer Part Number:
