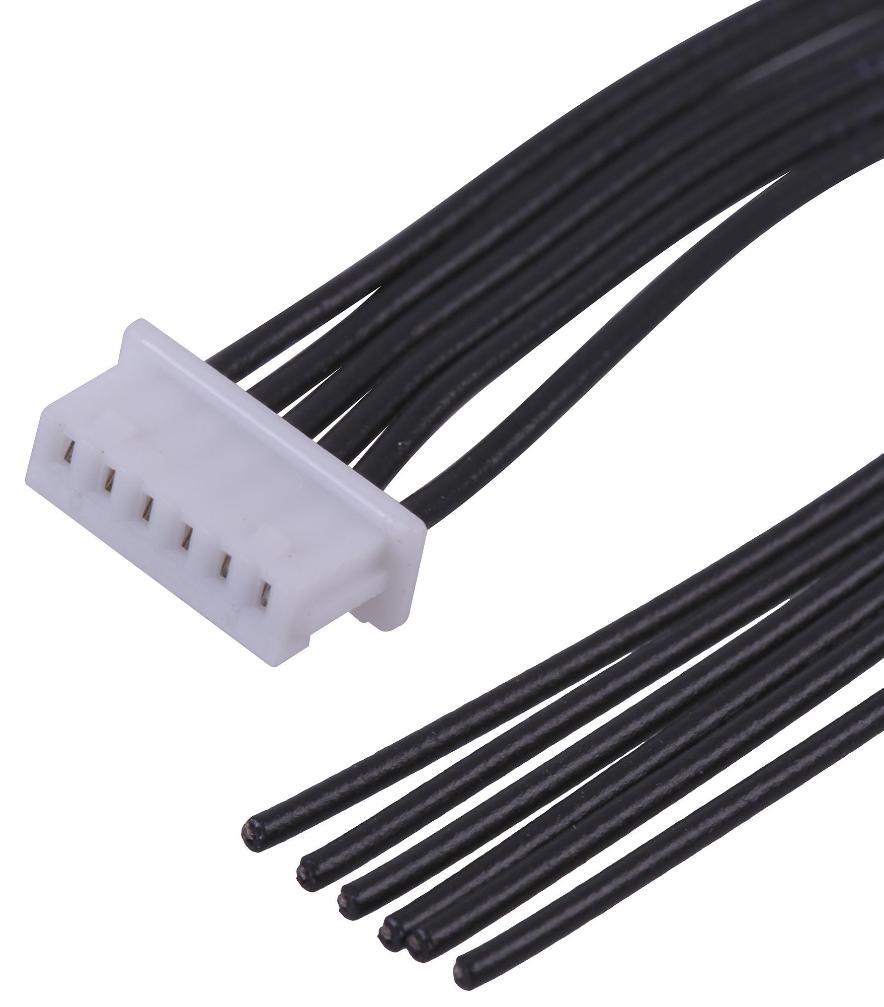

6 Pole PicoBlade Socket to Bare End Lead, Pitch 1.25mm, 300mm - 218112-0603
6 Pole PicoBlade Socket to Bare End Lead, Pitch 1.25mm, 300mm - 218112-0603
Regular price
£5.39 GBP
Regular price
Sale price
£5.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- 218112 series PicoBlade female-to-pigtail off-the-shelf (OTS) cable assembly
- Single row, natural colour
- Mates with PicoBlade header 53261, 53047, 53398, 53048 and PicoBlade plug housing 51047
- Phosphor Bronze metal material
- Tin plating mating and termination material
- Polyester resin material
- 1.25mm pitch - mating interface
- Single ended
- Crimp or compression termination interface style
- Built using UL1061 discrete wires, provides ease of design, prototyping and production
| Specifications | |
|---|---|
| Connector to Connector | PicoBlade Receptacle to Free End |
| No. of Positions | 6Ways |
| Connector Pitch | 1.25mm |
| No. of Rows | 1 Row |
| Cable Length - Metric | 300mm |
| Cable Length - Imperial | 11.8" |
| Product Range | PicoBlade OTS 218112 |
| Wire Gauge | 28AWG |
| Jacket Colour | Black |
| Country of Origin: | India |
