6 Pole Pluggable Female Connector Socket, Cage Clamp, 2.5mm2, 5.08mm Pitch - 231-306/026-000

6 Pole Pluggable Female Connector Socket, Cage Clamp, 2.5mm2, 5.08mm Pitch - 231-306/026-000

£4.59 GBP
£4.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

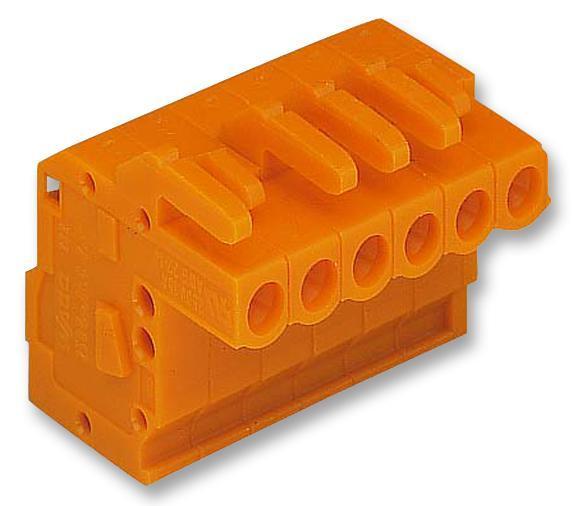

The 231-306/026-000 is a 6-pole orange Pluggable Female Connector with coding fingers closed end. This connector has tin-plated copper alloy contacts, a polyamide 6.6 insulator and the solid fine-stranded wiring method. It accepts 28 to 12AWG wire size.

Features

  • Universal connection for all conductor types
  • Cage Clamp® connection method
  • Integrated test ports

Specifications
Pitch Spacing 5.08mm
No. of Positions 6Ways
Conductor Area CSA 2.5mm2
Wire Connection Method Clamp
Rated Current 16A
Rated Voltage 320V
Country of Origin: Germany

EAN: 4044918346719
Manufacturer Part Number:
