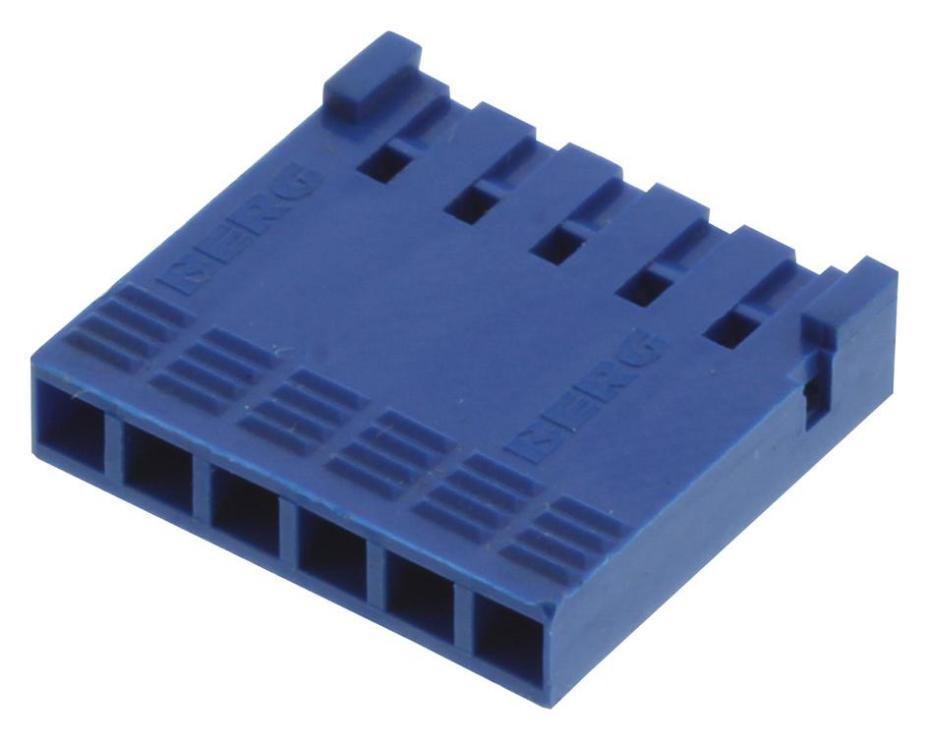

6 Way Dubox Crimp to Wire Receptacle Housing, 2.54mm Pitch - 65240-006LF
6 Way Dubox Crimp to Wire Receptacle Housing, 2.54mm Pitch - 65240-006LF
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DUBOX 65240 series Connector families offer an extensive range of through-hole and surface-mount part options, including either straight or right angle orientation from 2 to 50 positions, with a current rating of 3A (maximum) per individual contact. The Dubox® contact has a pre-stressed, dual beam design to enable low insertion force, 4-wall contact design for signal protection. These are applicable in electronic equipment or devices requiring a parallel, planar or perpendicular board-to-board, wire to-board or flat cable interconnects. Uses span industry segments.
Features
- Dual beam contact design
- Contact pre-stressed
- Mates with very short pins (5mm) stackable end-to-end and side-by-side
- Floating solder tails self centre on the circuit pads
- 4 wall contact design
- Duplex plating
- High reliable electrical performances
- Low insertion force required
- Meets your specific needs and is useful for Mezzanine Application
- Easy to assures the coplanarity
- Signal protection
- Maintaining the alignment for soldering and facilitates robotic placement
- Compatible with infrared and vaporphase reflow
| Specifications | |
|---|---|
| Product Range | FCI Dubox 65240 |
| Gender | Receptacle |
| No. of Positions | 6Ways |
| Pitch Spacing | 2.54mm |
| For Use With | FCI Dubox 65240 Series Contacts |
| Country of Origin: | France |
