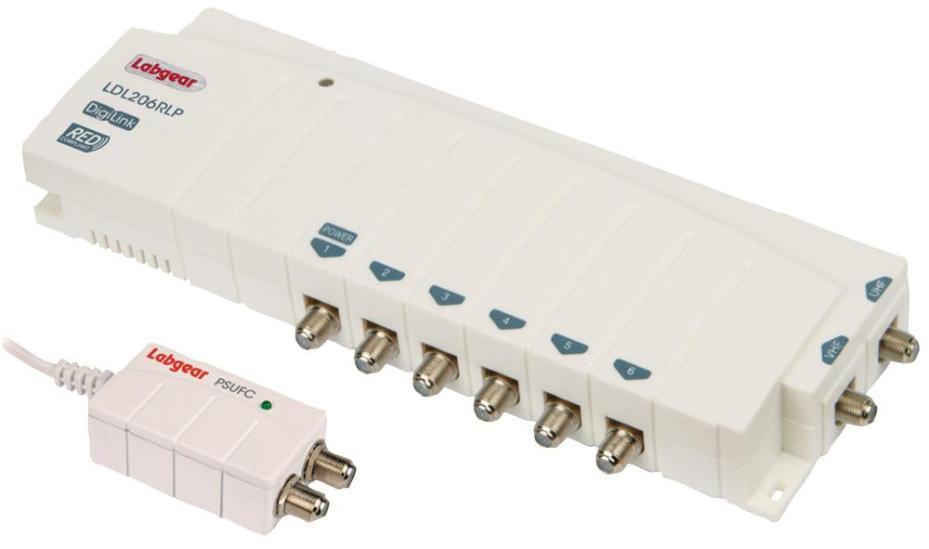

6 WAY LINE POWERED DISTRIBUTION AMP - LABGEAR
6 WAY LINE POWERED DISTRIBUTION AMP - LABGEAR
Regular price
£47.59 GBP
Regular price
Sale price
£47.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Line powered design allows for installation in locations with no convenient power access
- IR Bypass support to enable channel changing from remote locations
- Separate inputs for VHF (FM/DAB radio) and UHF (Freeview DVB-T/DVB-T2 TV) signals
- Improved impedance matching for enhanced signal transfer from amplifier to cable
- Fully compatible with other Labgear and DigiLink remote control systems
- RED, EMC and LVD compliant
- 2 Inputs, 6 Outputs
- VHF Frequency range: 87-230MHz
- UHF Frequency range: 470-790MHz
- Gain per port: 10dB
- Max. output level: 86dBuv
- Isolation between outlets: 20dB
- PSUFC Power supply; 12V DC, 300mA max.
- Dimensions (HxWxD): 35x265x95mm
- Compliant with Radio Equipment Directive 2014/53/EU and meets EN 303 354
- Class 0 suitable for digital TV signal distribution of channels 21-60 from a receiver in the UK and Eire
| Specifications | |
|---|---|
| Plug Type | UK |
| Important Product Info: | Designed to boost and distribute signals from the RF2 output of a satellite receiver. In areas affected by 4G interference a filter may be required. |
| Country of Origin: | China |
