60W Mono Volume Control for 100V Lines - E-VOL40
60W Mono Volume Control for 100V Lines - E-VOL40
Regular price
£36.29 GBP
Regular price
Sale price
£36.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

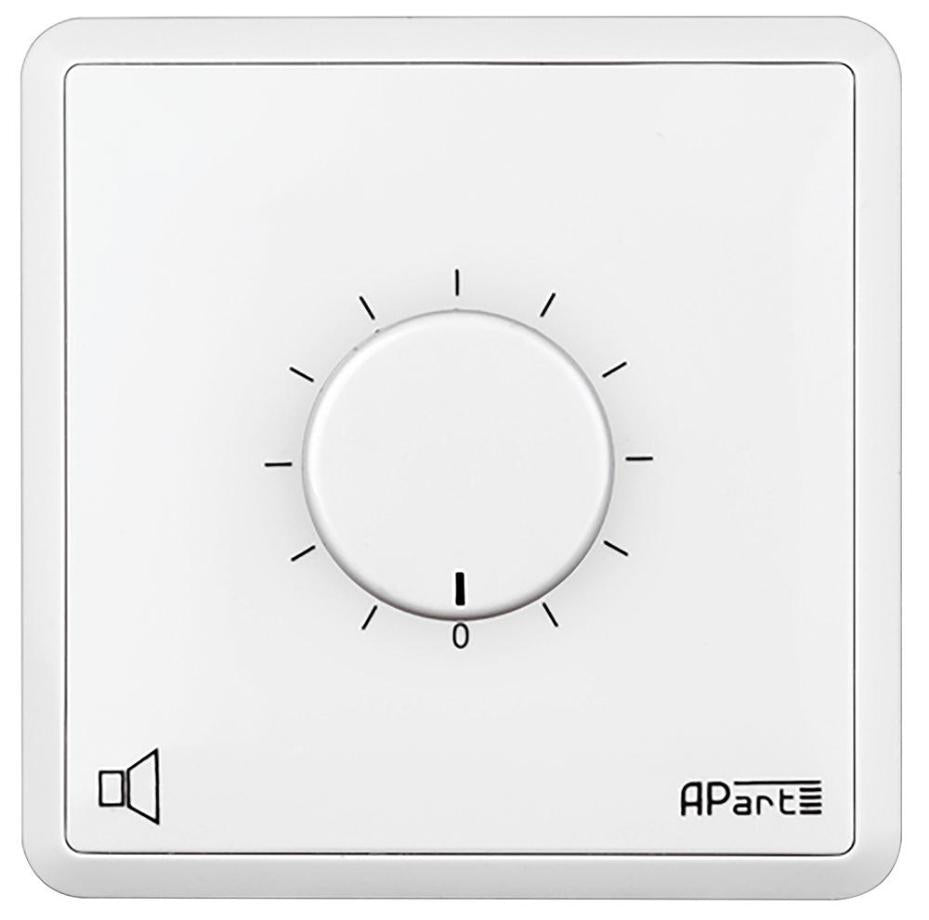

The E-VOL60 is a 100V volume control. It can handle up to 60W of power and is very durable thanks to the step-by-step attenuation in 11x steps and zero position. The E-VOL60 is designed to handle 24V priority signals. This means that you can always play an announcement out, even to zones where the local volume control is in the OFF position. The E-VOL60 is built on a universal chassis that easily can be integrated with Gira, Jung and Euro.
Features
- Steps: 0 to 11
- Connector: Euroblock 6 pole
- 24V priority relay
- Max. lead diameter: 2.5mm?
- Max. power: 60W
- Mounting: Screw
- Dimensions (HxWxD): 80x80x50mm
- Weight: 336g
| Specifications | |
|---|---|
| Product Range | APART 100V Volume Controllers |
| Important Product Info: | If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the mic. The 24V signal will close a relay on E-VOL20 volume control, and the signal will pass, even when the volume is in OFF position. This can be very useful for emergency/evacuation messages. |
| Country of Origin: | China |
