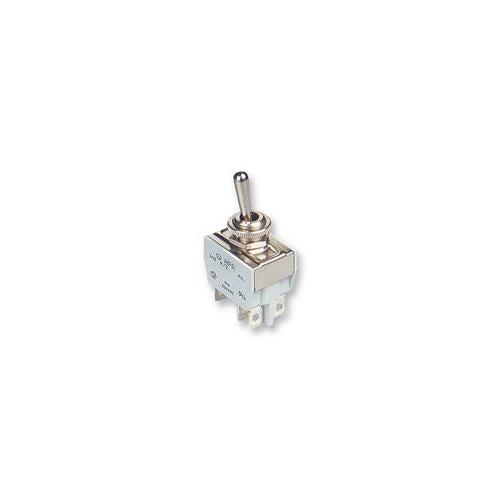

646H/2 Apem 15A Toggle (Metal) DPDT On-Off
646H/2 Apem 15A Toggle (Metal) DPDT On-Off
Regular price
£8.59 GBP
Regular price
Sale price
£8.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The 646H/2 is a double-pole double-throw (DPDT) High Amperage Toggle Switch with metal lever, screw terminals and solder lug/quick-connect terminals and ON-ON function. The 600H series switch has silver/nickel alloy contact and nickel plated brass actuator/bushing. Terminal and contact supports are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength. Security caps are available to prevent inadvertent lever operation. Sealing boots are available to protect the switches against dust and water.
Product Features
- 26° Angle of throw
- 10mR Initial contact resistance
- 1.5Nm Maximum torque (applied to nut)
Product Details
| Contact Configuration: | DPDT |
| Contact Current Max: | 15A |
| Contact Voltage AC Nom: | 250V |
| Contact Voltage DC Nom: | 24V |
| Product Range: | 600H Series |
| Switch Mounting: | Panel |
| Switch Operation: | On-On |
| Switch Terminals: | Solder |
