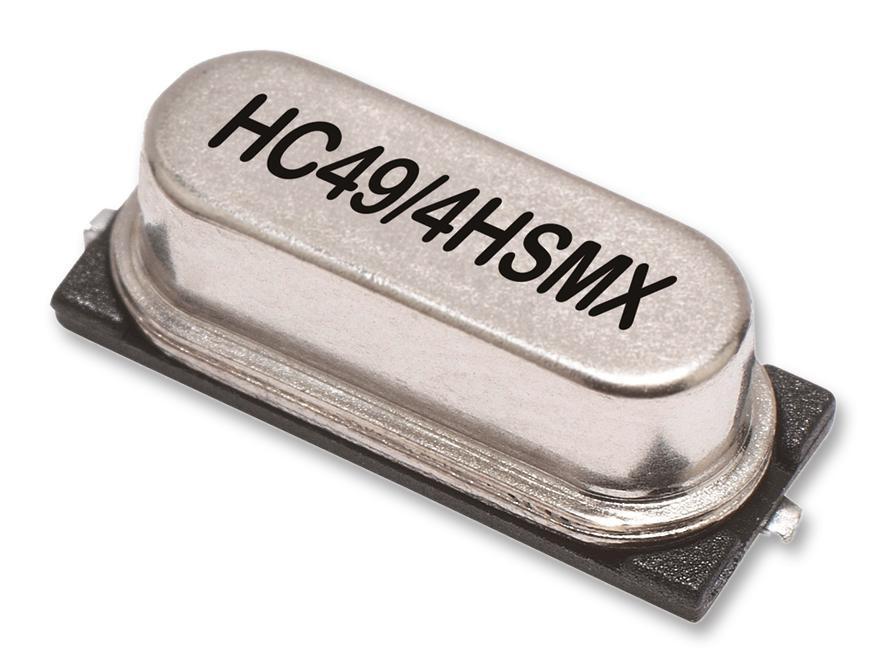

8MHz Crystal, SMD, 11.4mm x 4.9mm, 50ppm, 30pF - LFXTAL011301
8MHz Crystal, SMD, 11.4mm x 4.9mm, 50ppm, 30pF - LFXTAL011301
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The LFXTAL011301 is a 11 x 4.9mm Resistance Welded Crystal with hermetically sealed in an inert atmosphere, glass to metal seals on leads and industrial standard package. Lead wires are mounted onto a plastic former to create a gull wing mount. Frequency 8MHz, load capacitance of 30pF and frequency tolerance at ±30ppm.
Features
- Ageing ±5ppm per year (maximum)
- Fundamental mode
- 40R ESR
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 11.4mm x 4.9mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 30pF |
| Frequency Tolerance + / - | 30ppm |
| Product Range | HC-49/4HSMX Series |
| Operating Temperature Min | -10°C |
| Operating Temperature Max | 60°C |
| Country of Origin: | Hong Kong |
