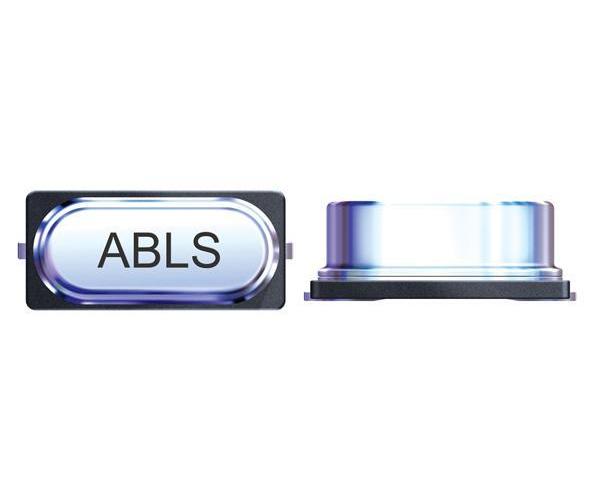

8MHz Crystal, SMD, 11.5mm x 4.7mm, 50ppm, 18pF - ABLS-8.000MHZ-B4-T
8MHz Crystal, SMD, 11.5mm x 4.7mm, 50ppm, 18pF - ABLS-8.000MHZ-B4-T
Regular price
£1.49 GBP
Regular price
Sale price
£1.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABLS series SMD low profile Crystal Oscillator suitable for RoHS compliant reflows. It is used in modems and microprocessor applications.
Features
- Available for tight stability and extended temperature range
- Hermetically sealed
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 11.5mm x 4.7mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 30ppm |
| Product Range | ABLS Series |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | China |
