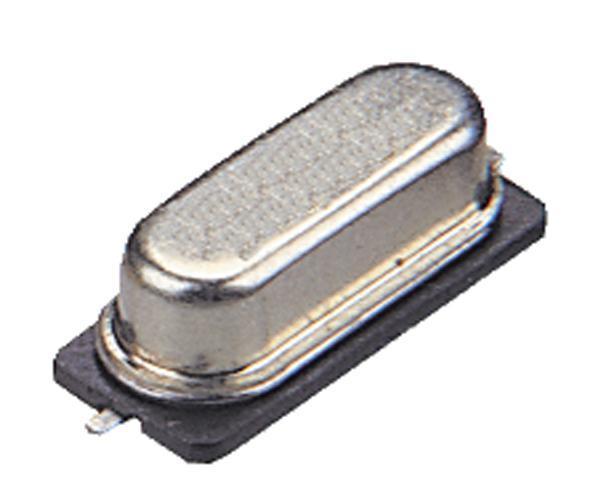

8MHz Crystal, SMD, 12.4mm x 4.5mm, 50ppm, 18pF - 8.000MHZ 49USMX/30/50/-40+80/18PF/ATF
8MHz Crystal, SMD, 12.4mm x 4.5mm, 50ppm, 18pF - 8.000MHZ 49USMX/30/50/-40+80/18PF/ATF
Regular price
£1.99 GBP
Regular price
Sale price
£1.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 8.000MHZ 49USMX/30/50/40/18PF/ATF is a 12.4 x 4.5 x 2.5mm Low Profile Surface Mount Crystal with hermetically sealed can. 49USMx crystal is available with can height 3.2mm, load capacitance at 18pF.
Features
- Ageing ±3ppm per year (maximum)
- 3.2 to 70MHz Frequency range
- AT-cut Fundamental mode
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 12.4mm x 4.5mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 30ppm |
| Product Range | 49USMX Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | China |
