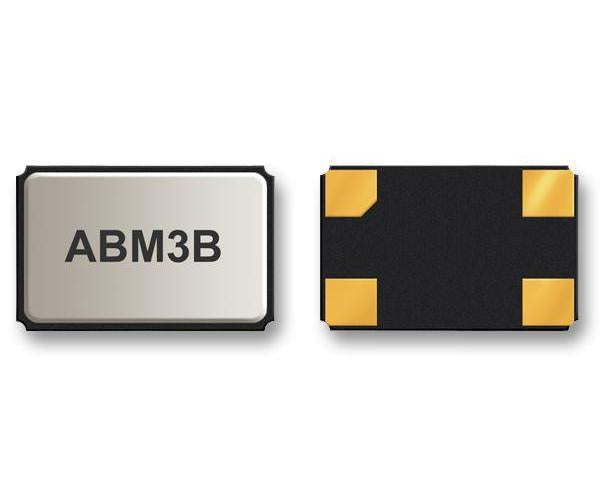

8MHz Crystal, SMD, 5mm x 3.2mm, 50ppm, 18pF - ABM3B-8.000MHZ-B2-T
8MHz Crystal, SMD, 5mm x 3.2mm, 50ppm, 18pF - ABM3B-8.000MHZ-B2-T
Regular price
£1.69 GBP
Regular price
Sale price
£1.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM3B-8.000MHZ-B2-T is a ceramic SMD crystal with frequency range of 8 to 50MHz. It is used in cellular telephones, pagers, communication and test equipment, PCMCIA and wireless applications.
Features
- Tight stability and seam sealing
- Ceramic package and metal lid assures high precision and reliability
- Operates in fundamental mode
- 5.0mm x 3.2mm x 1.1mm size
- Load capacitance of 18pF
| Specifications | |
|---|---|
| Frequency Nom | 8MHz |
| Crystal Case | SMD, 5mm x 3.2mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM3B Series |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | China |
