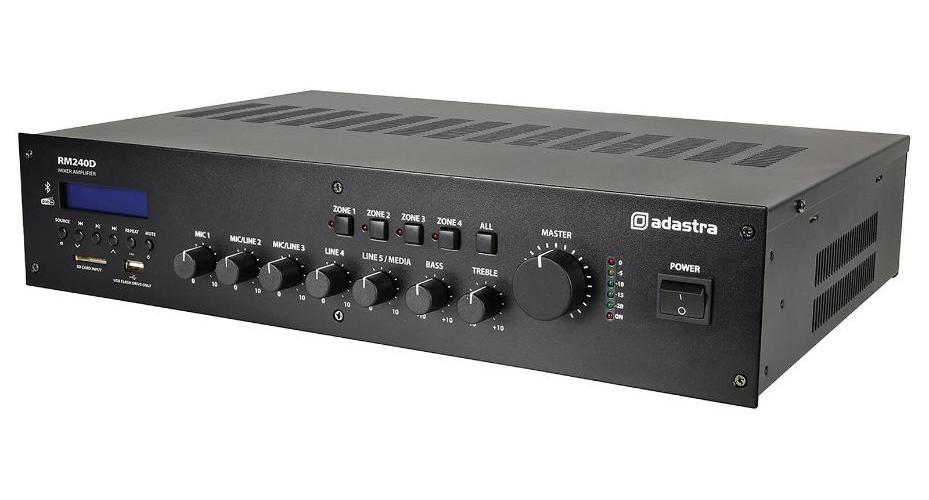

953.225UK - 100V Mixer Amplifier with DAB+, BT, USB/SD, 240W - RM240D
953.225UK - 100V Mixer Amplifier with DAB+, BT, USB/SD, 240W - RM240D
Couldn't load pickup availability
5 Channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover" feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.
Features
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB/SD audio player
- 4 Switchable 100V outputs and 1 unswitched output
- Optional 4 Ohm to 16 Ohm output
- XLR input with switchable +20V phantom power
- 2x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
- Switchable VOX voiceover feature
- 2U 19" rack mountable (rack ears supplied)
- 24V emergency mute contacts
- Mains 230Vac or 24Vdc power option
- Bluetooth version: 5V
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser: Bass - 100Hz +/-10dB
- Equaliser: Treble - 10KHz +/-10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 XLR, switchable)
- Audio source: DAB+/FM tuner, USB/SD player, Bluetooth receiver
- Emergency control: 24V contacts - mute all except Mic.1 when triggered
- THD:
1.0% - Output Power: 240W rms
- Fuse: T5A
- Dimensions: 433x320x88mm
- Weight: 7.37kg
| Specifications | |
|---|---|
| Country of Origin: | China |
