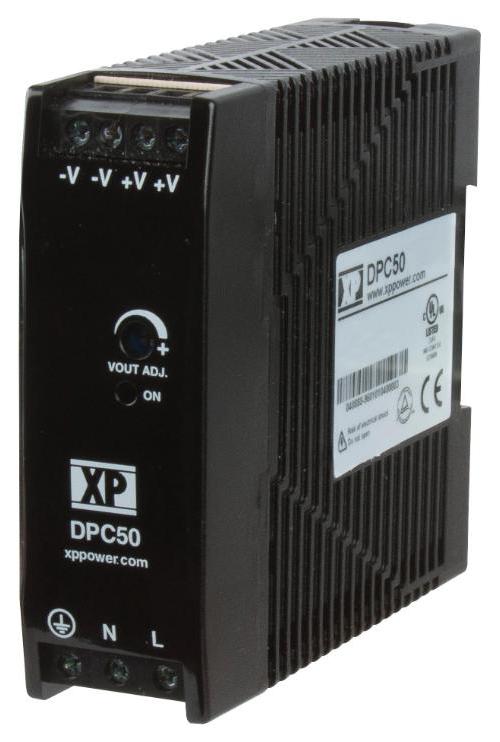

AC/DC DIN Rail Power Supply, 24V, 2.1A, 50W - DPC50US24
AC/DC DIN Rail Power Supply, 24V, 2.1A, 50W - DPC50US24
Regular price
£66.79 GBP
Regular price
Sale price
£66.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DPC50 series is an AC to DC ultra slim design DIN rail AC to DC power supply.It has a universal input range from 85VAC to 264VAC without the need for any input selector switches, meets EN/IEC 60950-1 safety approvals as well as EMC specifications EN55032 for class B conducted and radiated emissions. It also complies with industrial control equipment standard UL508. Typical applications include factory automation, process control and various other industrial applications.
Features
- Ultra Slim Design
- Ambient Operation Temperature from -25°C to 70°C
- High Efficiency
- Wide Output Adjustment Range
- Output Voltages from 5V to 24V
- Less Than 0.3W No Load Input Power
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 50W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 2.1A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | DPC Series |
| Country of Origin: | Taiwan |
