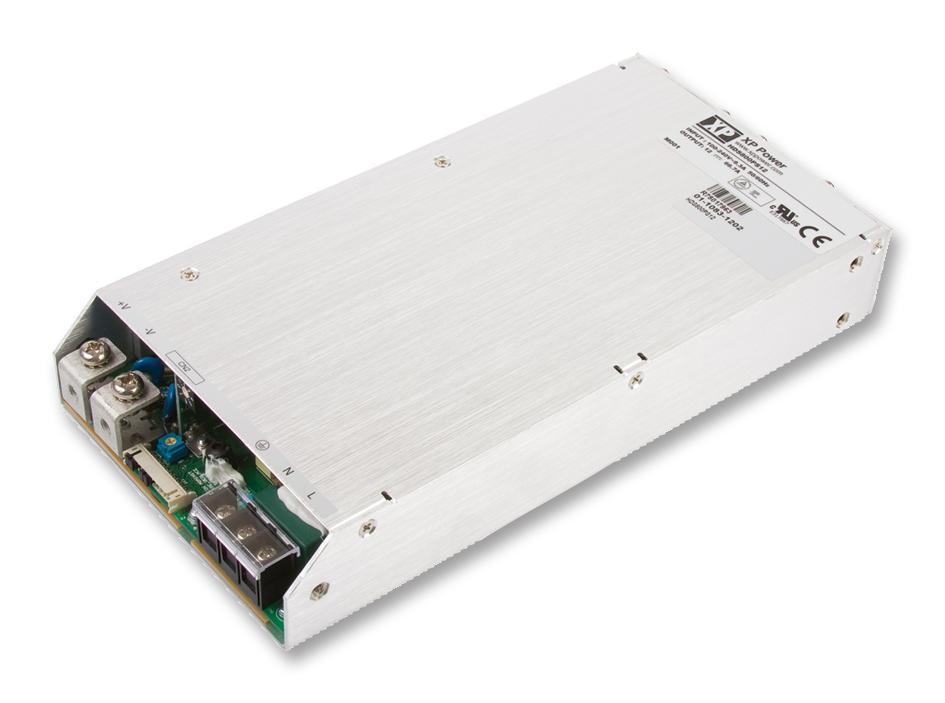

AC/DC Enclosed Power Supply, 12V, 66.7A, 800W - HDS800PS12
AC/DC Enclosed Power Supply, 12V, 66.7A, 800W - HDS800PS12
Regular price
£401.29 GBP
Regular price
Sale price
£401.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The HDS800 series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or I2C bus in a very high efficiency, high power density 800W chassis mount package. Measuring just 9.8" x 5" x 1.6", the HDS800 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A
Features
- High Efficiency, up to 92%
- High Power Density
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-105%)
- Parallel Operation
- Fully Featured Signals & Controls
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1Outputs |
| Output Power Max | 800W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 66.7A |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | HDS800 Series |
| Country of Origin: | Taiwan |
