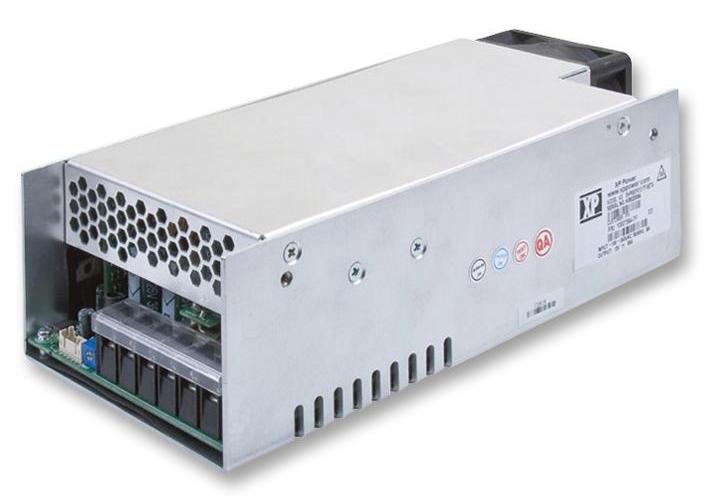

AC/DC Enclosed Power Supply, 36V, 18A, 655W - SHP650PS36-EF
AC/DC Enclosed Power Supply, 36V, 18A, 655W - SHP650PS36-EF
Regular price
£322.59 GBP
Regular price
Sale price
£322.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SHP650 series chassis mount AC-DC power supply with industrial electronics and ITE approvals. The SHP650 AC-DC power supply provides up to 650W of output power in three mechanical packages to provide installation flexibility in a range of applications. It control features of the unit to provide detection of loss of AC input and remote On/Off control. Multiple units can used in parallel via the current share facility, providing higher power solutions. Low earth leakage current, and conducted EMC compliance to Class B also simplify higher power system design. Safety approvals are IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, SEMI F47.
Features
- Rugged construction
- Variable fan speed for noise reduction
- AC OK, remote on/off and active current share
- 3 year warranty
- Output voltage is 36V (V1), input frequency is 47-63Hz
- Output current is 18A (V1)
- Standby supply is 5V/0.2A (V2), output power is 655W
- Input voltage is 85-264VAC, derate output power 10%
90VAC, 85% typical efficiency - Overvoltage/overload protection, overtemperature protection, short circuit protection
- Operating temperature is -20°C to 70°C, derate linearly from 50°C at 2.5%/°C to 50% at 70°C
| Specifications | |
|---|---|
| Country of Origin: | China |
