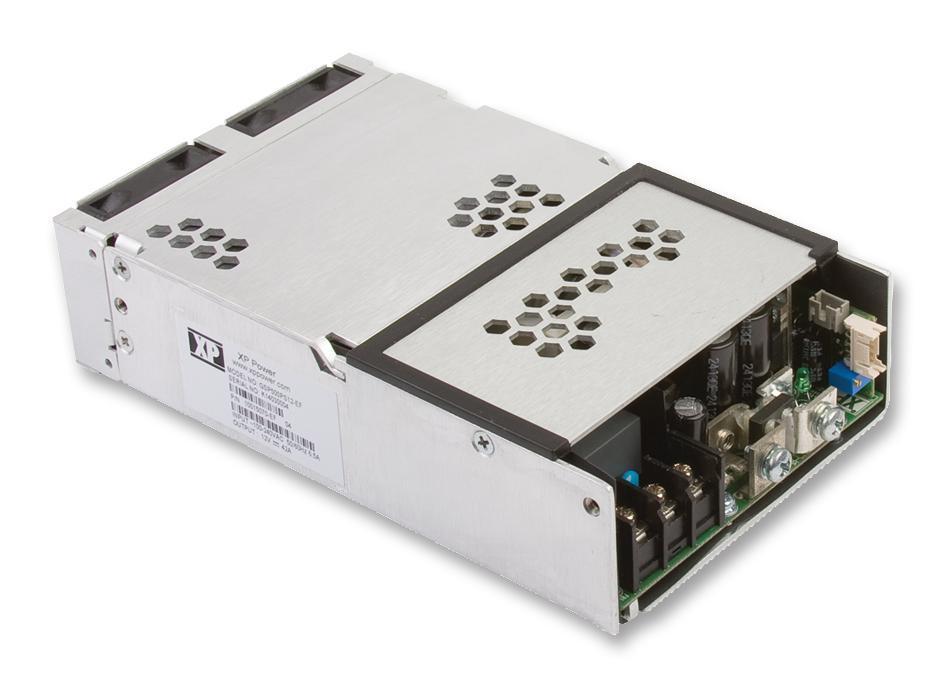

AC/DC Enclosed Power Supply, 48V, 10.5A, 500W - GSP500PS48-EF
AC/DC Enclosed Power Supply, 48V, 10.5A, 500W - GSP500PS48-EF
Regular price
£341.09 GBP
Regular price
Sale price
£341.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
GSP500 series forced-air cooled chassis mount AC-DC power supply with medical and ITE approvals. This can be supplied as a U channel for system cooling or with very quiet integral fans (-EF). These fans are intelligently controlled to provide the most optimised acoustic noise in the system and further more the GSP500 can provide up to 180W without forced cooling, thus allowing fans to be switched off during periods of lower system loading. Safety approvals are IEC60950-1 and IEC62368-1, IEC60601-1 including risk management, UL62368-1, CSA62368-1 via cUL, ANSI/AAMI ES60601-1 & CSA C22.2, No.60601-1, EN62368-1, EN60601-1.
Features
1W standby power, overvoltage/overload/overtemperature and short circuit protection - Remote on/off
- 5V/2A forced standby output
- 3 year warranty
- Dimension is 170.4 x 101.6 x 41.9mm
- Output voltage is 48VDC, input voltage is 80 to 264VAC (derate output power
90VAC) - Output current is 3.75A convection, 10.5A forced, input frequency is 47 to 63Hz
- Fan supply is 12V/0.3A, efficiency is 90% (at 230VAC full load)
- Maximum output power is 650W peak
- Operating temperature is -20 to +70°C
| Specifications | |
|---|---|
| Country of Origin: | China |
