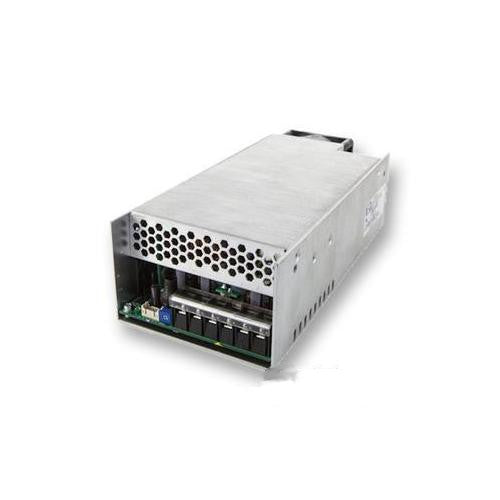

AC/DC Enclosed Power Supply, 48V, 13.5A, 655W - SHP650PS48-EF
AC/DC Enclosed Power Supply, 48V, 13.5A, 655W - SHP650PS48-EF
Regular price
£322.59 GBP
Regular price
Sale price
£322.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SHP series AC to DC power supply includes overload/over voltage/overtemperature/short circuit protection. Operating temperature range from -20°C to +70°C(derate linearly from +50 °C at 2.5% / °C to 50% at +70 °C, -40 °C start up). Approved by IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, SEMI F47, CE & UKCA meets all applicable directives & legislation.
Features
- Rugged industrial construction
- Variable fan speed for noise reduction
- Remote on/off and active current share(AC ok)
- 5V standby, screw terminals
- 3 year warranty
- Switching frequency is PFC 70KHz, main converter 200KHz, standby 130KHz typical
- Input voltage range from 80 to 264VAC, output voltage is 48V, output current is 13.5A
- Isolation is 3000VAC (input to output), output power is 655W
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1Outputs |
| Output Power Max | 655W |
| Output Voltage - Output 1 | 48VDC |
| Output Current - Output 1 | 13.5A |
| Output Voltage - Output 2 | 12VDC |
| Output Current - Output 2 | 500mA |
| Output Voltage - Output 3 | 5VDC |
| Output Current - Output 3 | 200mA |
| Input Voltage VAC | 80V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | SHP Series |
| Country of Origin: | China |
