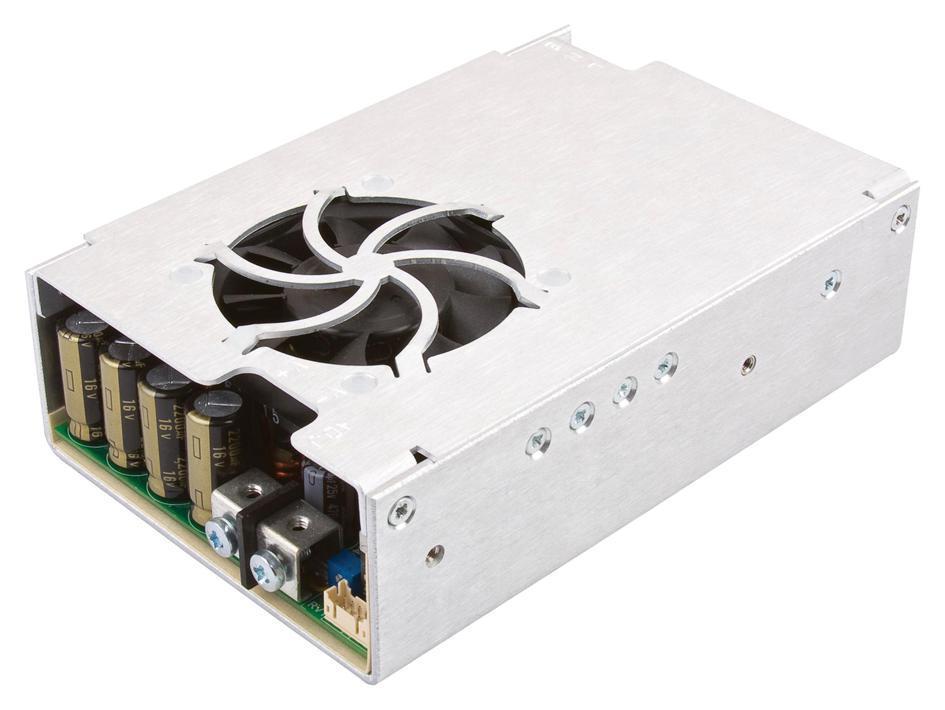

AC/DC Enclosed Power Supply, 48V, 8.3A, 400W - FCM400PS48
AC/DC Enclosed Power Supply, 48V, 8.3A, 400W - FCM400PS48
Regular price
£399.29 GBP
Regular price
Sale price
£399.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
FCM400 series is an AC-DC power supply. Safety approvals are IEC60950-1 CB report, UL60950-1, EN60950-1, IEC62368-1 CB report, UL62368-1, EN62368-1, IEC60601-1 CB report, CSA 22.2 No.60601-1, ANSI/AAMI ES60601-1, TUV60601-1.
Features
- IT and medical approvals
- Low noise fan, screw terminals
- 5V/0.5A standby, AC OK and remote on/off
- 3 year warranty
- Output voltage is 48V, 85% typical efficiency
- Output current is 12.5A peak
- Output power is 600W peak
- Input voltage is 80-275VAC, derate output power
- Input frequency is 47-63Hz
- Operating temperature is -10°C to +70°C, derate linearly from +50°C at 2.5% /°C to 50% load at +70°C
| Specifications | |
|---|---|
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1Outputs |
| Output Power Max | 400W |
| Output Voltage - Output 1 | 48VDC |
| Output Current - Output 1 | 8.3A |
| Input Voltage VAC | 80V AC to 275V AC |
| Power Supply Output Type | Fixed |
| Product Range | FCM400 Series |
| Country of Origin: | Vietnam |
