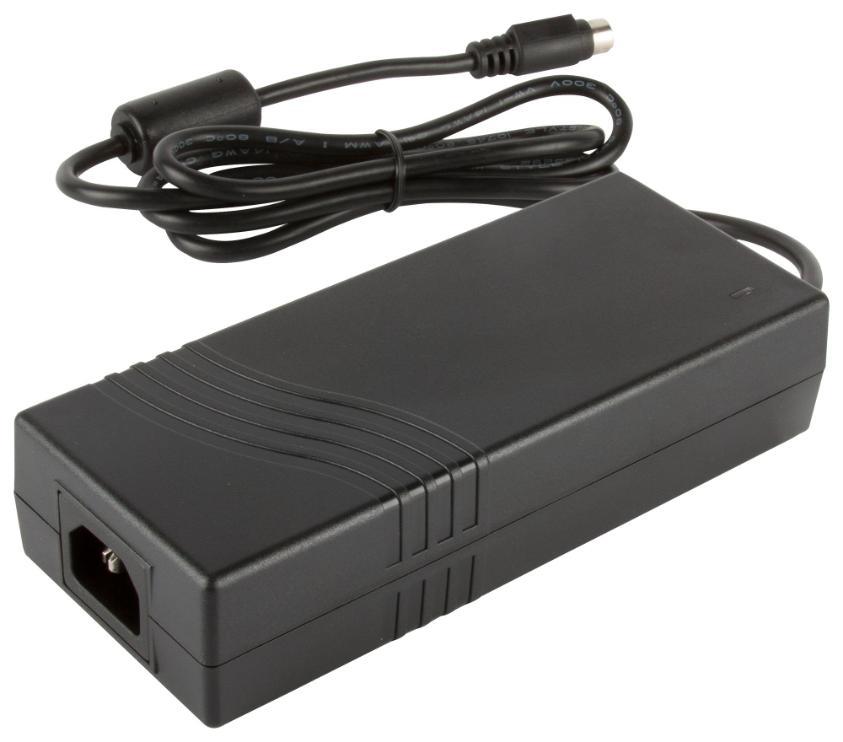

AC/DC External Power Supply, 48V, 6.25A, 300W - VES300PS48
AC/DC External Power Supply, 48V, 6.25A, 300W - VES300PS48
Regular price
£118.89 GBP
Regular price
Sale price
£118.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
VES300 series is a desktop AC-DC power supply with IEC62368-1 ITE approvals. The VES300 with energy efficiency level VI and CoC tier 2 this desktop/external AC-DC power supply is designed for high volume/low cost applications. Safety approvals are UL62368-1, EN62368-1, IEC62368-1, AU/NZ 62368-1.
Features
- High power density, overvoltage/overload/short circuit protection
- <0.15W standby power
- China compulsory certification (CCC) qualified
- Dimension is 197.4 x 88.9 x 39mm
- Output power is 300W
- Output voltage is 48V
- Output current is 6.25A, total regulation is ±5%
- Efficiency is 91%
- Input voltage is 90 to 264VAC, input frequency is 47 to 63Hz
- Operating temperature is -10 to 60°C (derate from 100% load at 40°C to 50% load at 60°C)
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 300W |
| Output Voltage - Output 1 | 48VDC |
| Output Current - Output 1 | 6.25A |
| Output Connector | 8 Way Mini Fit JR |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | VES Series |
| Plug Type | Mains Plug Sold Separately |
| Country of Origin: | China |
