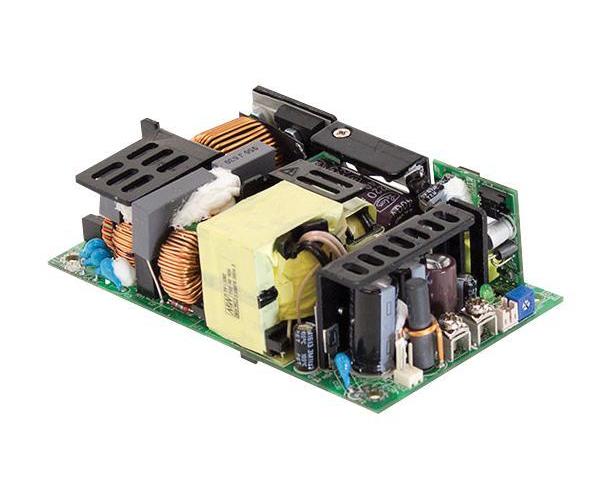

AC/DC Open Frame Power Supply, 24V, 10.5A, 252W - EPP-400-24
AC/DC Open Frame Power Supply, 24V, 10.5A, 252W - EPP-400-24
Regular price
£110.99 GBP
Regular price
Sale price
£110.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5" by 3" footprint. It accepts 80-264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-400 is able to be used for both Class I (with FG) and Class II(no FG) system design. EPP-400 is equipped with complete protection functions. Complies with the international safety regulations such as TUV EN60950-1, UL60950-1 and 1EC60950-1. EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
Features
- 5"x3" miniature size
- Universal AC input / Full range
- Built-in active PFC function
- EMI Class B for both Class I (with FG) and Class II (without FG) configuration
- No load power consumption <0.5W
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection for 250W and 400W with 25CFM forced air
- Built-in 12V/0.5A FAN supply
- Standby 5V at IA with fan, 0.6A without fan
- Built-in remote sense function
- LED indicator for power on
- Output 18V available
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | 400W at 25CFM |
| Power Rating (Convection Cooling) | 250W |
| Input Voltage VAC | 80V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 10.5A |
| Product Range | EPP-400 Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
