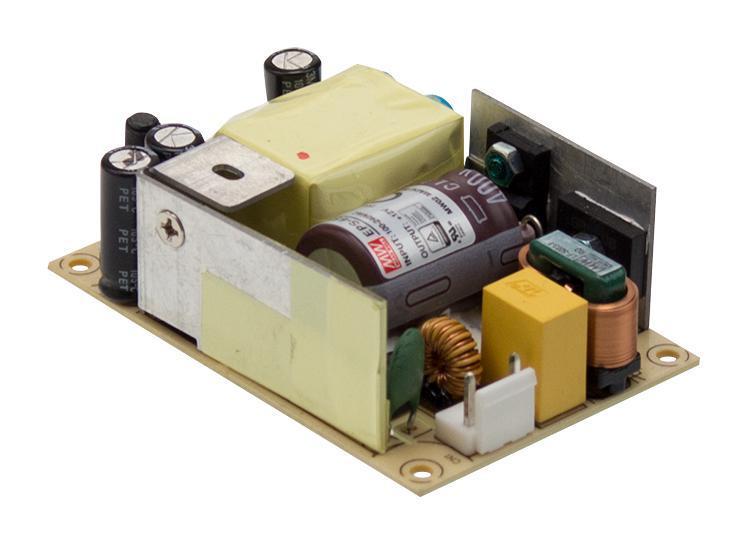

AC/DC Open Frame Power Supply, 24V, 2.71A, 65W - EPS-65S-24
AC/DC Open Frame Power Supply, 24V, 2.71A, 65W - EPS-65S-24
Regular price
£24.49 GBP
Regular price
Sale price
£24.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3" by 2" footprint. It accepts 80-264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-65S is able to be used for Class II (no FG) system design.
Features
- 3"x2" miniature size
- Universal AC input/full range
- Class II (without FG) installations
- No load power consumption <0.1W
- High efficiency up to 91%
- For 1U applications
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- -30°C to +70°C wide range of operating temperature
- Operating altitude up to 5km
- LED indicator for power on
- 3-years warranty
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Power Rating (Convection Cooling) | 65W |
| Input Voltage VAC | 80V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 2.71A |
| Product Range | EPS-65S Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
