AC/DC Open Frame Power Supply, Medical Approved, 24V, 5.4A, 130W - JPS130PS24-M
AC/DC Open Frame Power Supply, Medical Approved, 24V, 5.4A, 130W - JPS130PS24-M
Regular price
£204.19 GBP
Regular price
Sale price
£204.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

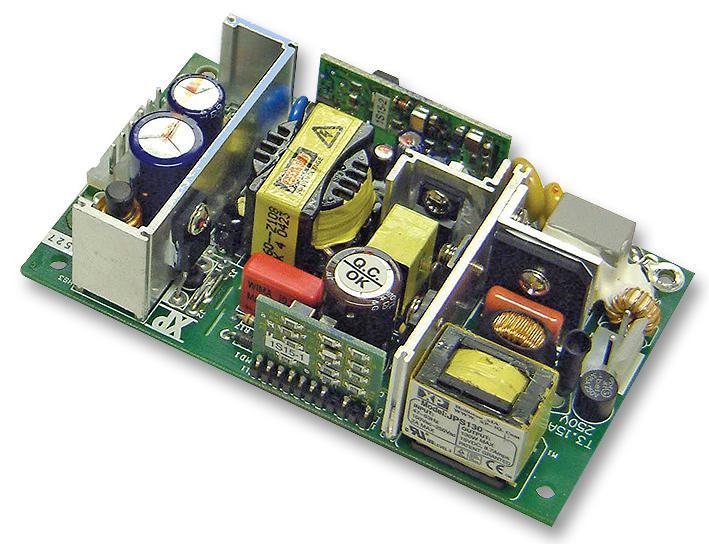

The JPS130PS24-M is a 1-output 130W open-frame AC/DC power Supply with fixed output. It features overvoltage, overload and short-circuit protection.
Features
- High Efficiencyup to 90%
- Medical Approval (JPS130M Versions)
- 3" x 5" Footprint
- 100 W Convectioncooled
- 130 W Forcedcooled
- Single & Multi Outputs
- See Technical Note for information about XP Power's plans for the UKCA Marking
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | 130W at 18CFM |
| Power Rating (Convection Cooling) | 100W |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 4.5A |
| Product Range | JPS130 Series |
| Country of Origin: | Taiwan |
