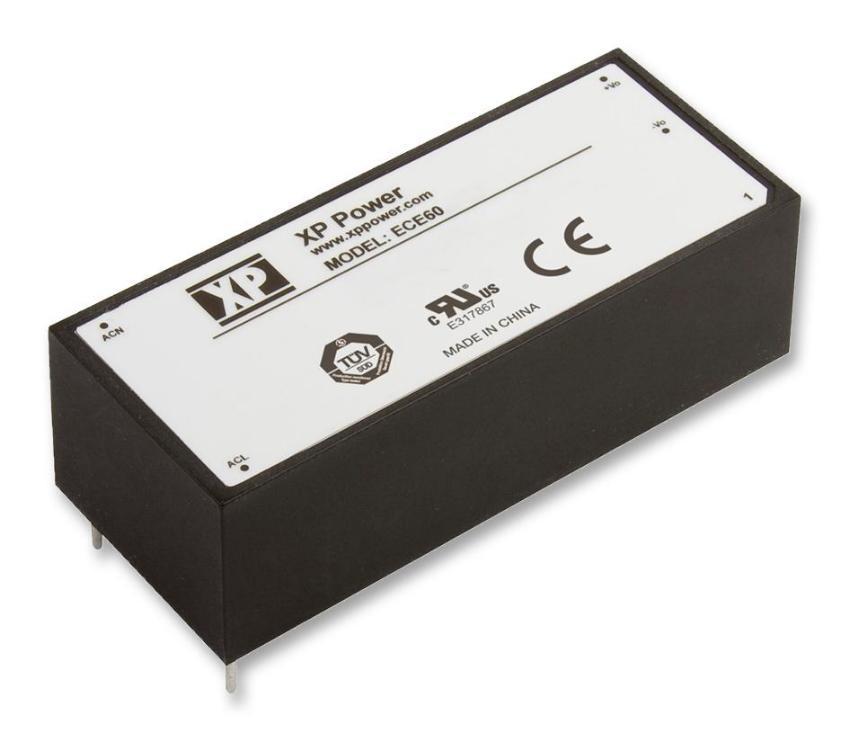

AC/DC PCB Mount Power Supply, 24V, 2.5A, 60W - ECE60US24
AC/DC PCB Mount Power Supply, 24V, 2.5A, 60W - ECE60US24
Regular price
£103.09 GBP
Regular price
Sale price
£103.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ECE60 series is encapsulated AC-DC power supply. With approvals to world-wide safety standards, compliance with class B for conducted and radiated emissions and a 20%, 30s peak load capability. Not requiring any external components, these class II isolation parts benefit system designers with easy integration into a wide range of applications. Safety approvals are UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, IEC60950-1:2005 Ed 2/IEC62368-1:2014.
Features
- PCB mount
- Ultra compact size, peak load capability
- <0.3W no load input power
- 3 year warranty
- Dimension is 91.4mm x 38.1mm x 28mm
- Output power is 60W, output current is 2.5A nominal, output voltage is 24V
- 89% efficiency
- Input voltage range from 85 to 264VAC/120 to 370VDC (derate load from 100% at 90VAC to 90% at 85VAC)
- Input frequency is 47 to 63Hz, trip and restart (hiccup mode) short circuit protection
- Operating temperature is -40 to +70°C (derate linearly from 100% load at 50°C to 50% load at 70°C)
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 60W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 2.5A |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 264V AC |
| Width | 38.1mm |
| Height | 28mm |
| Depth | 91.4mm |
| Product Range | ECE60 Series |
| Country of Origin: | China |
