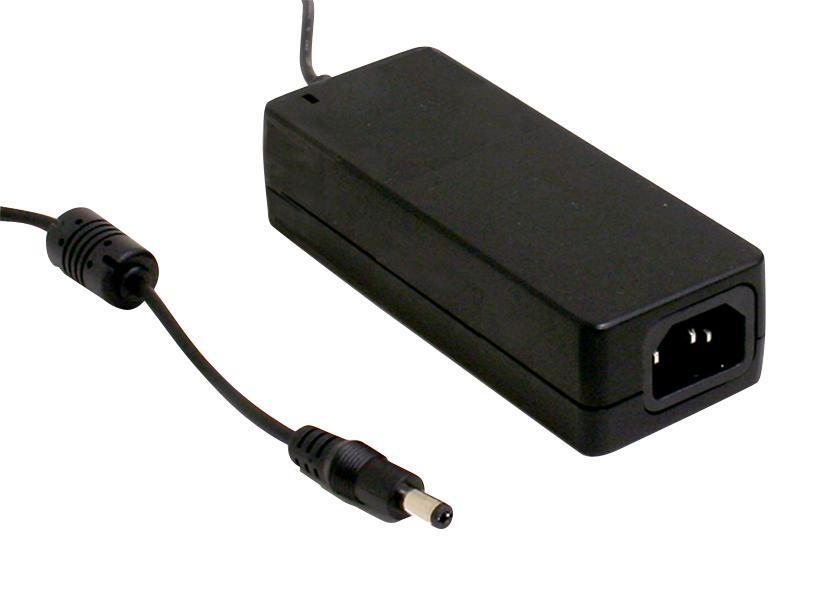

AC/DC Power Supply, Medical Approved, 24V, 2.5A, 60W - GSM60A24-P1J
AC/DC Power Supply, Medical Approved, 24V, 2.5A, 60W - GSM60A24-P1J
Regular price
£33.89 GBP
Regular price
Sale price
£33.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
GSM60A24-P1J is a GSM60A series 60W AC-DC single output medical type adapter. This has universal AC input/full range and 3 pole AC inlet IEC320-C14. It includes short circuit, overload, overvoltage, over temperature protection. Approved by ANSI/AA MI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11.
Features
- Input voltage range from 80 to 264VAC, 113 to 370VDC, output DC voltage is 24V
- Output rated current is 2.5A, output rated power is 60W(max), typical efficiency is 90%
- Low leakage current <100μA, fully enclosed plastic case
- Medical safety approved (MOPP level), class I power (with earth pin)
- LED indicator for power on, no load power consumption<0.1W
- ErP step2 compliant (level V)
- Meet EISA 2007 (Energy Independence and Security Act)
- 3 years warranty
- Working temperature range from -30 to +60°C
- Dimension is (L x W x H) 125 x 50 x 31.5mm
| Specifications | |
|---|---|
| Power Supply Applications | Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 60W |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 2.5A |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 80V AC to 264V AC |
| Product Range | GSM60A Series |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
