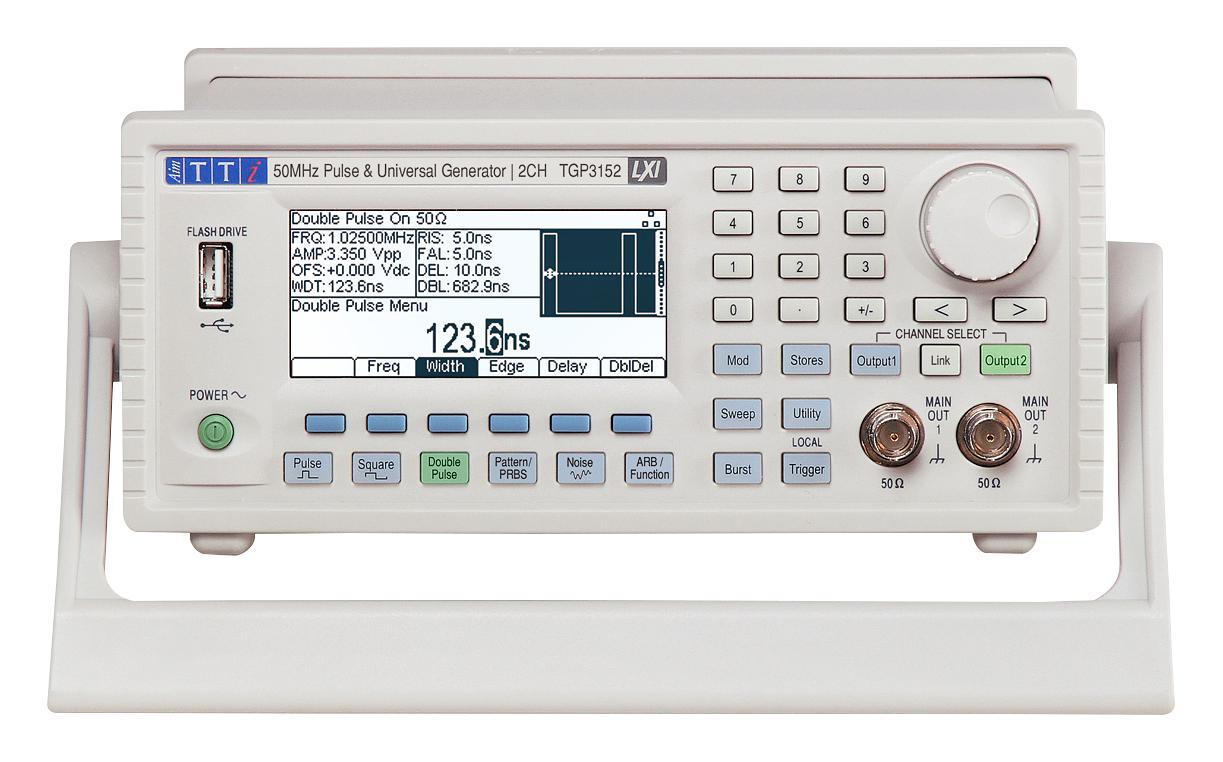

Aim-tti Instruments - TGP3152 - Pulse & Univ Gen 50mhz Dual
Aim-tti Instruments - TGP3152 - Pulse & Univ Gen 50mhz Dual
Regular price
£2,591.49 GBP
Regular price
Sale price
£2,591.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This TGP3100 series pulse generator replicates the capabilities of a traditional pulse generator but with extra features, such as pulse modulations. It can also act as a noise generator and function/ arbitrary generator, making it a very universal waveform generator.
Features
- Pulse, double pulse, pulse patterns and PRBS waveforms
- Asynchronous operation, externally triggered pulses or pulse reconstruction
- High drive capability output
- AM, FM, PM, FSK, BPSK, SUM, PWM and PDM modulations
- Triggered or gated operation using internal/ external triggers
- Full noise generator to 25MHz
- Full arbitrary/ function generator with 16 waveform types
- Extensive internal/ external modulation of all waveform types
- Linear and logarithmic sweeps
- Front panel USB interface
| Specifications | |
|---|---|
| Product Range: | TGP3100 Series |
| No. of Channels: | 2 Channel |
| Signal Generator Type: | Arbitrary, Function, Pulse |
| Bandwidth: | 50MHz |
| Signal Generator Modulation: | AM, BPSK, FM, FSK, PM, PDM, PWM, SPDM, Sum |
| Warranty: | 3 Years |
| Plug Type: | UK |
| Important Product Info: | This instrument should be earthed. |
| Country of Origin: | Great Britain |
