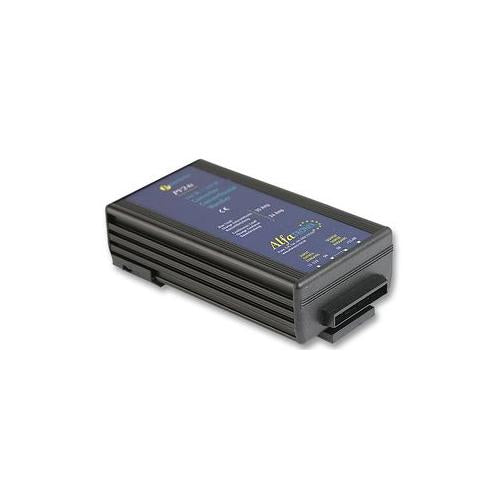

ALFATRONIX - PV24S - DC/DC CONVERTER, 24/12VDC 24/30A
ALFATRONIX - PV24S - DC/DC CONVERTER, 24/12VDC 24/30A
Regular price
£149.69 GBP
Regular price
Sale price
£149.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
A DC-DC converter allowing 12V DC operated equipment to be powered by 24V/26V batteries commonly found on diesel engine vehicles, vessels and aircraft. Supplied with a snap on mounting bracket.
Product Features
- High efficiency, cool running
- Rugged and compact with anodised aluminium/polycarbonate cases
- Tamper proof
- Fast and easy installation
- Over current and overheat protection
- Transient Voltage protection to ISO7637-2
- LED output indication
- 6.3mm push-on connectors
- Click and fit mounting clip included
Product Details
| Approvals & Standards: | CE |
| DC / DC Converter Mounting: | Chassis |
| DC / DC Converter Output Type: | Fixed |
| DC / DC Converter Type: | - |
| Depth: | 166mm |
| Height: | 50mm |
| Input Voltage DC Max: | 32V |
| Input Voltage DC Min: | 17V |
| No. of Outputs: | 1 |
| Output Current Max: | 24A |
| Output Power Max: | 288W |
| Output Voltage Nom.: | 12V |
| Width: | 87mm |
