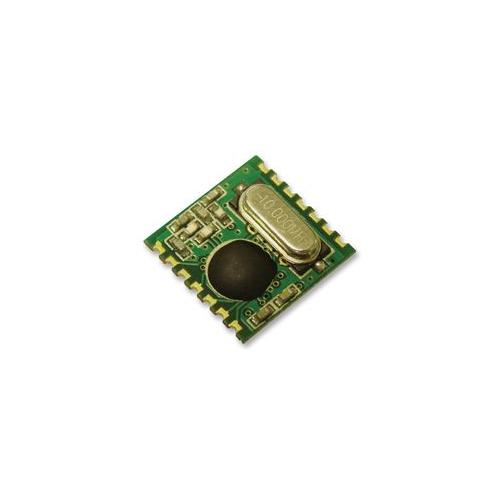

ALPHA-TRX433S Rf Solutions Rf Transceiver Module Fm 433Mhz

The Alpha Modules are extremely cost effective but high performance radio modules. Supplied in a miniature Surface mount package these modules can Transmit/Receive at upto 115Kbps at a maximum of 300m. Operating at 2 - 5V, the modules monitors their battery voltage and can sleep with very low standby current. They can wake intermittently and provide direct control outputs to a microcontroller making them ideally suited to battery applications. These Modules will suit one to one multi-node wireless links in applications including car and building security, POS and inventory tracking, remote process monitoring.

• FM Transceiver Module
• Fast PLL lock time
• Wakeup timer
• Low power consumption
• 10MHz crystal for PLL timing
• Clock and reset signal output for external MCU
• 16 bit RX Data FIFO
• SPI interface
• Standby current less than 0.3uA
• High data rate up to 256 kbps
