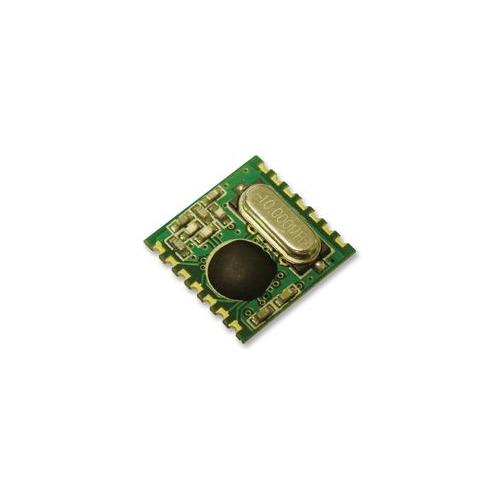

ALPHA-TX433S Rf Solutions Rf Transmitter Module Fm 433Mhz
ALPHA-TX433S Rf Solutions Rf Transmitter Module Fm 433Mhz
Regular price
£13.69 GBP
Regular price
Sale price
£13.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The ALPHA-TX433S is an 433MHz FM transmitter module, These modules are extremely cost effective but high performance radio modules. Supplied in a miniature surface mount package. These modules can transmit/receive at up to 256Kbps at a maximum of 300m and operating at 2 - 5V, The module monitors their battery voltage and can sleep with very low standby current. They can wake intermittently and provide direct control outputs to a microcontroller making them ideally suited to battery application.
Product Features
- 433MHz FM transmitter module
- Transmit range up to 300m
- Miniature SMT packages
- Data rate up to 256Kbps
- Programmable output power
- Programmable frequency deviation
- SPI interface (for Config)
- Clock and reset signal for external MCU
- Wakeup timer
- Differential antenna output and automatic antenna tuning
Product Details
| Data Rate Max: | 256Kbps |
| Frequency: | 439.75MHz |
| Frequency Range: | 430.24MHz to 439.75MHz |
| Modulation Type: | FSK |
| RF Modulation: | FSK |
| Sensitivity dBm: | -109dBm |
| Supply Current: | 10.5mA |
| Supply Voltage Max: | 5.4V |
| Supply Voltage Min: | 2.2V |
| Supply Voltage Range: | 2.2V to 5.4V |
