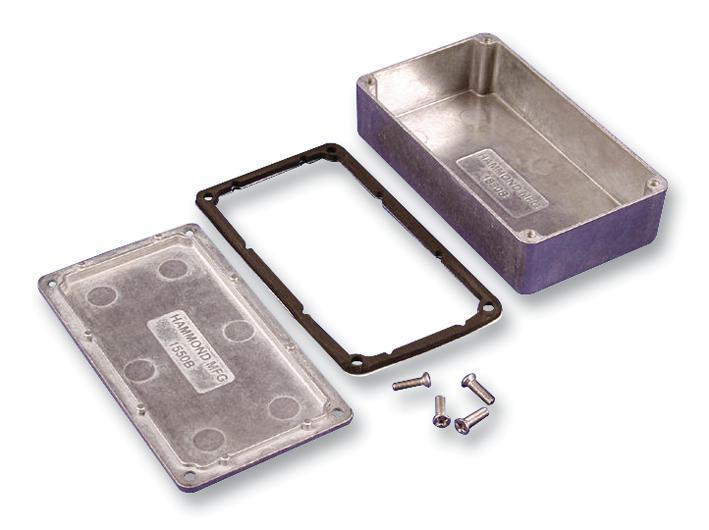

Aluminium Enclosure, 64x30x115, IP66 - 1550WB
Aluminium Enclosure, 64x30x115, IP66 - 1550WB
Regular price
£11.59 GBP
Regular price
Sale price
£11.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 1550WB is a light duty watertight Enclosure made of rugged die-cast aluminium alloy. The lap joint construction with a self-adhesive, EVA foam gasket for the lid provides protection against access of dust and water. It is painted with tough - satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance assembled appearance.
Features
- Replacement screws - 1550WMS100BK
- No internal ribs for easy installation of connectors without interference or additional milling
- Low side wall draft angle for easy PC board mounting
- 4x M3.5 x 0.6 x 12mm long stainless steel Philips head machine screws
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | Diecast Aluminium |
| External Height - Metric | 115mm |
| External Width - Metric | 64mm |
| External Depth - Metric | 30mm |
| IP Rating | IP66 |
| Body Colour | Natural |
| NEMA Rating | NEMA 4X |
| External Height - Imperial | 4.53" |
| External Width - Imperial | 2.52" |
| External Depth - Imperial | 1.18" |
| Product Range | 1550 |
| Product Contents: | Box, Lid and 4x Cover screws. |
| Country of Origin: | Taiwan |
