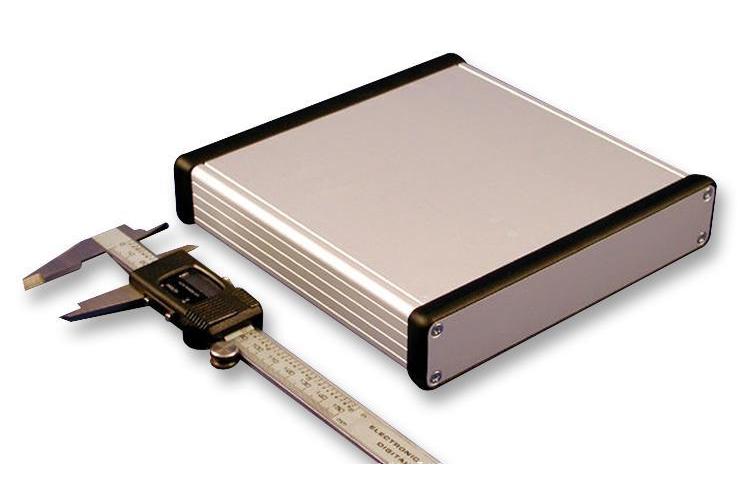

Aluminium Enclosure, Metal End Panels, 165x31x160mm - 1455R1601
Aluminium Enclosure, Metal End Panels, 165x31x160mm - 1455R1601
Regular price
£37.59 GBP
Regular price
Sale price
£37.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 1455 series extruded aluminium Enclosure with metal end panels. It is designed to house PC boards or for equipment interfacing. Extruded body includes a slide removable belly plate - except in smaller C and D sizes. It is available in clear, black, blue and red extruded aluminium body options.
Features
- PC boards mount horizontally by sliding into internal slots extruded into the enclosure body
- Rugged body constructed from extruded aluminium with a minimum thickness of 0.06"
| Specifications | |
|---|---|
| Enclosure Type | Small |
| Enclosure Material | Extruded Aluminium |
| External Height - Metric | 30.5mm |
| External Width - Metric | 165mm |
| External Depth - Metric | 160mm |
| IP Rating | IP54 |
| Body Colour | Natural |
| External Height - Imperial | 1.2" |
| External Width - Imperial | 6.5" |
| External Depth - Imperial | 6.3" |
| Product Range | 1455 |
| Product Contents: | 2x Aluminium end panels, 2x Black ABS plastic bezels, Extruded aluminium body, Self-adhesive rubber feet, #6 x 3/8" TTT End panel screws and #4 flat head Phillips drive steel screws. |
| Important Product Info: | Recommended screw torque is 5lbf/in. |
| Country of Origin: | Canada |
