Aluminum Electrolytic Capacitor, 470uF, 63V - MAL213818471E3
Aluminum Electrolytic Capacitor, 470uF, 63V - MAL213818471E3
Regular price
£4.89 GBP
Regular price
Sale price
£4.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

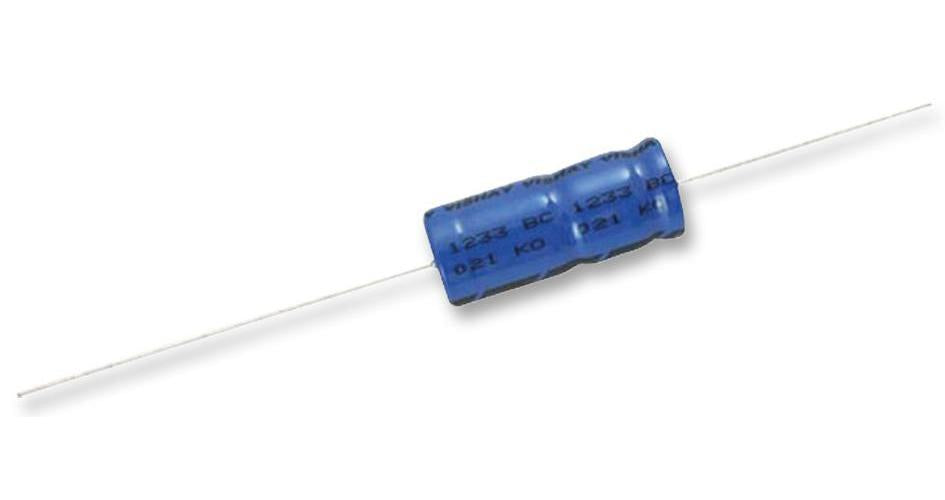

The MAL213818471E3 is an axial leaded Aluminum Electrolytic Capacitor with cylindrical aluminum case and a blue sleeve insulation. Suitable for smoothing, filtering, buffering in SMPS, coupling, decoupling, vibration-/shock-resistant low mounting height boards and stand-by applications.
Features
- Polarized aluminum electrolytic capacitor, non-solid electrolyte
- Miniaturized, high CV-product per unit volume
- High ripple current capability
- 860mA at 100Hz/105°C Rated RMS ripple current
- 63μA (after 5 minutes) Maximum leakage current
- 0.160R at 10/100kHz Maximum impedance
| Specifications | |
|---|---|
| Capacitance | 470μF |
| Voltage(DC) | 63V |
| Capacitance Tolerance | ± 20% |
| Capacitor Terminals | Axial Leaded |
| Lifetime at Temperature | 5000 hours at 105°C |
| Polarity | Polar |
| Capacitor Case / Package | Axial Leaded |
| Product Diameter | 15mm |
| Product Length | 30mm |
| Product Range | 138 AML |
| ESR | 0.26ohm |
| Ripple Current | 860mA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Country of Origin: | China |
