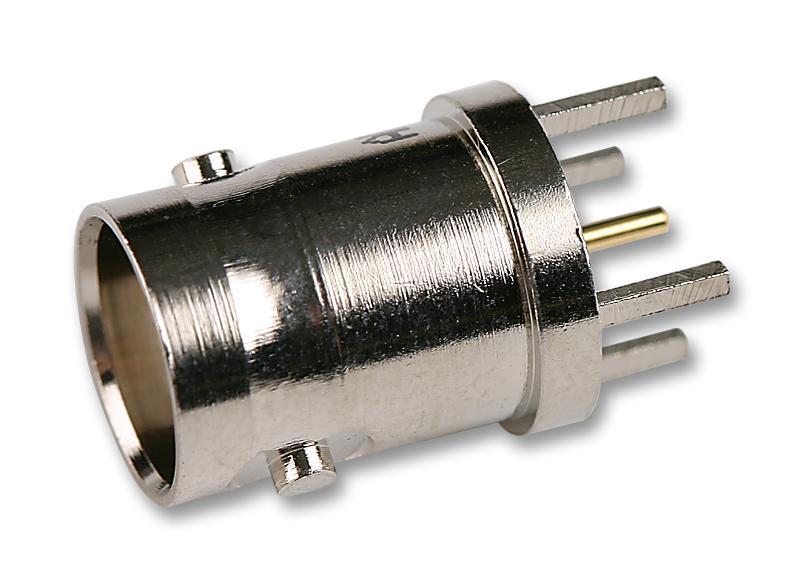

Amphenol - B6251C1-NT3G-50 - Rf Coaxial, Bnc, Straight Jack, 50ohm
Amphenol - B6251C1-NT3G-50 - Rf Coaxial, Bnc, Straight Jack, 50ohm
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The B6251C1-NT3G-50 is a straight PCB BNC Jack with gold-plated phosphor bronze contacts, nickel-plated brass body and a Teflon insulator. The 50R BNC product line is a miniature quick connect/disconnect RF connector. It is ideally suited for RG-58, 59 to RG-179 and RG-316 coaxial cable.
Product Info
- Nickel-plated annealed copper crimp ferrule
- 500V RMS Working voltage
- 1500V RMS Dielectric withstanding voltage
| Details | |
|---|---|
| Connector Type: | BNC Coaxial |
| Connector Body Style: | Straight Jack |
| Coaxial Termination: | Through Hole Vertical |
| Impedance: | 50ohm |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold Plated Contacts |
| Frequency Max: | 4GHz |
| Connector Mounting: | PCB Mount |
| Country of Origin: | Taiwan |
