Amphenol - MCX1121A1-3GT30G-5-50 - Rf Coaxial, Mcx, Straight Plug, 50ohm
Amphenol - MCX1121A1-3GT30G-5-50 - Rf Coaxial, Mcx, Straight Plug, 50ohm
Regular price
£5.89 GBP
Regular price
Sale price
£5.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

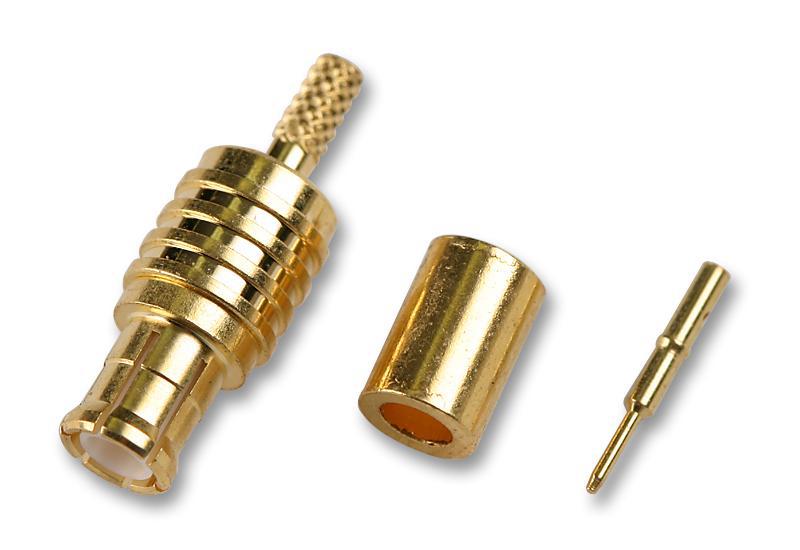

The MCX1121A1-3GT30G-5-50 is a straight Crimp Plug with 30μinch gold-plated brass contacts and a Teflon insulation. This MCX series has a 50R impedance structure which operates in a frequency range of up to 6GHz. It is push-on/pull-off mating design facilitates a quick connect/disconnect capability. This crimp plug is suitable for RG174, RG188A and RG316 miniature cable.
Product Info
- 335VAC Working voltage
- 1000V Dielectric withstanding voltage
- 5000MR Insulation resistance
| Details | |
|---|---|
| Connector Type: | MCX Coaxial |
| Connector Body Style: | Straight Plug |
| Coaxial Termination: | Crimp |
| Impedance: | 50ohm |
| Coaxial Cable Types: | RG174, RG188A, RG316 |
| Contact Material: | Brass |
| Contact Plating: | Gold Plated Contacts |
| Frequency Max: | 6GHz |
| Connector Mounting: | Cable Mount |
| Country of Origin: | Taiwan |
