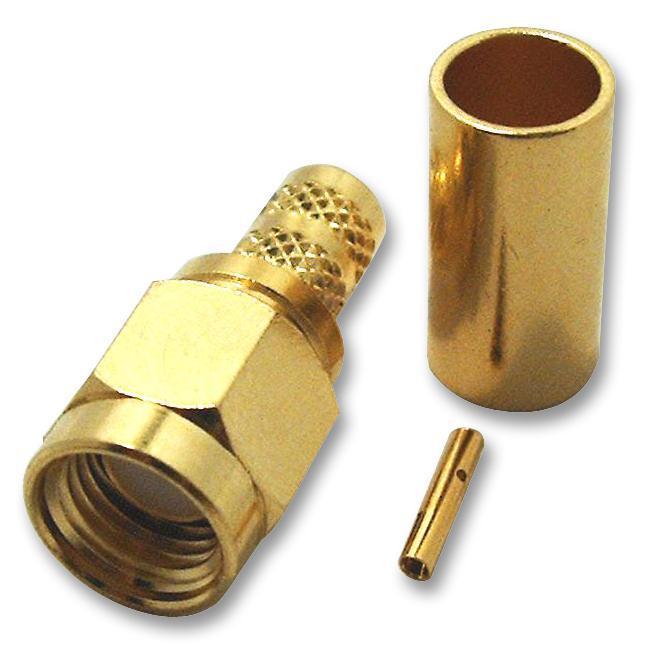

Amphenol - RSMA1111A1-3GT50G-1-50 - Rf Coaxial, Sma Rp, Straight Plug, 50ohm
Amphenol - RSMA1111A1-3GT50G-1-50 - Rf Coaxial, Sma Rp, Straight Plug, 50ohm
Regular price
£5.59 GBP
Regular price
Sale price
£5.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The RSMA1111A1-3GT50G-1-50 is a straight reverse polarity SMA Crimp Plug with gold-plated beryllium copper contacts, silicone rubber gaskets and a Teflon insulation. The 50R SMA connector is semi-precision, subminiature units that provide excellent electrical performance from DC to 18GHz. This high-performance connector is compact in size and mechanically have outstanding durability. This SMA connector for semi-rigid coaxial cables and the SMA plug-to-jack adapter offer a precise and simple means of phase adjustment for microwave devices.
Product Info
- Low reflection stainless steel construction
- 1/4-36 Threaded coupling
- Phase adjustable SMA connector provide ease of mechanical screw adjustments
- 5000MR Insulation resistance
| Details | |
|---|---|
| Connector Type: | SMA RP Coaxial |
| Connector Body Style: | Straight Plug |
| Coaxial Termination: | Crimp |
| Impedance: | 50ohm |
| Coaxial Cable Types: | Essex 621715, RG58 |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Gold Plated Contacts |
| Frequency Max: | 18GHz |
| Connector Mounting: | Cable Mount |
| Country of Origin: | China |
