Amphenol - SMB1252B1-3GT30G-50 - Rf Coaxial, Smb, Right Angle Jack, 50ohm
Amphenol - SMB1252B1-3GT30G-50 - Rf Coaxial, Smb, Right Angle Jack, 50ohm
Regular price
£4.99 GBP
Regular price
Sale price
£4.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

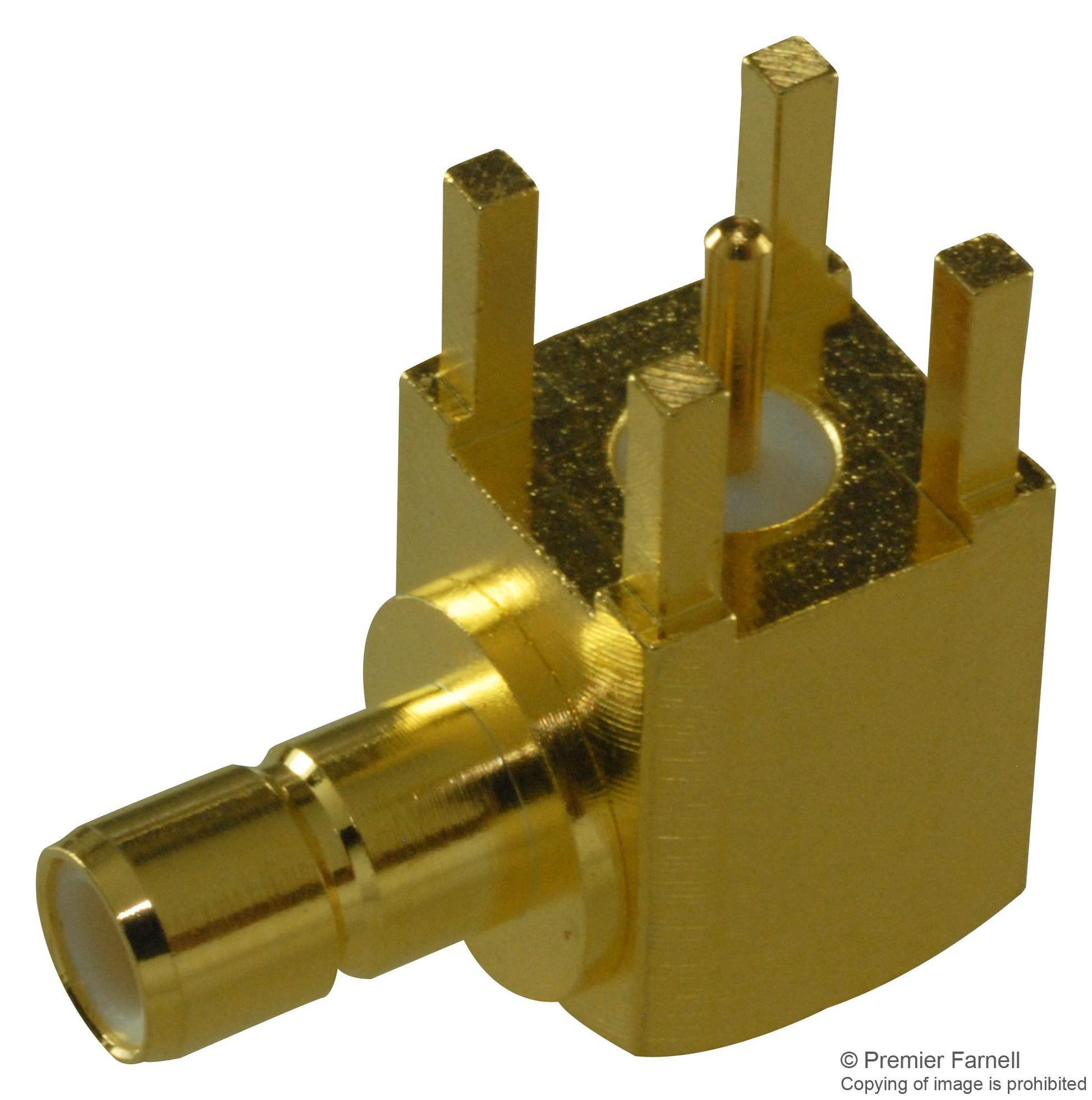

The SMB1252B1-3GT30G-50 is a Right Angle Jack with gold-plated brass contacts and a Teflon insulation. The SMB connector conforms to the requirements of MIL-C-39012 and the interface is in compliance with MIL-STD-348. The SMB provides broadband capability through 4GHz with a snap-on connector design and utilizes die-cast components on non-critical areas to provide a low-cost solution. This right angle jack is suitable for PC board.
Product Info
- Quick connect/disconnect snap-on mating reduces installation time
- SMB PCB slide-on jack allows board-to-board mounting with a low insertion force
- Annealed copper alloy crimp ferrule
- 1000MR Minimum insulation resistance
| Details | |
|---|---|
| Connector Type: | SMB Coaxial |
| Connector Body Style: | Right Angle Jack |
| Coaxial Termination: | Through Hole Right Angle |
| Impedance: | 50ohm |
| Contact Material: | Brass |
| Contact Plating: | Gold Plated Contacts |
| Frequency Max: | 4GHz |
| Connector Mounting: | PCB Mount |
| Country of Origin: | Taiwan |
