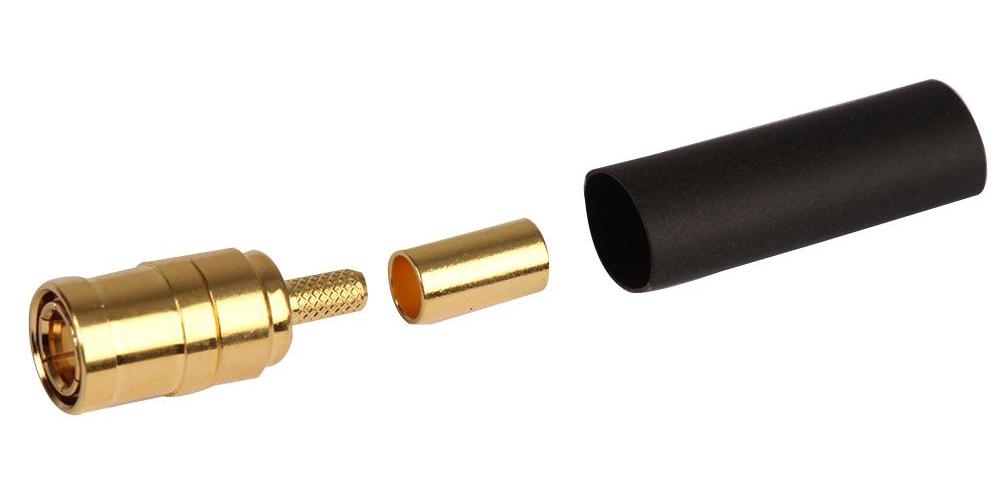

Amphenol - SMB6121A1-3GT30G-5-50 - Rf Coaxial, Smb, Straight Plug, 50ohm
Amphenol - SMB6121A1-3GT30G-5-50 - Rf Coaxial, Smb, Straight Plug, 50ohm
Regular price
£5.79 GBP
Regular price
Sale price
£5.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SMB6121A1-3GT30G-5-50 is a straight Crimp Plug with gold-plated brass contacts and a Teflon insulation. The SMB connector conforms to the requirements of MIL-C-39012 and the interface is in compliance with MIL-STD-348. The SMB provides broadband capability through 4GHz with a snap-on connector design and utilizes die-cast components on non-critical areas to provide a low-cost solution. This right angle jack is suitable for PC board.
Product Info
- Quick connect/disconnect snap-on mating reduces installation time
- SMB PCB slide-on jack allows board-to-board mounting with a low insertion force
- Annealed copper alloy crimp ferrule
- 1000MR Minimum insulation resistance
| Details | |
|---|---|
| Connector Type: | SMB Coaxial |
| Connector Body Style: | Straight Plug |
| Coaxial Termination: | Crimp |
| Impedance: | 50ohm |
| Coaxial Cable Types: | RG174, RG188A, RG316 |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Gold Plated Contacts |
| Frequency Max: | 4GHz |
| Connector Mounting: | Cable Mount |
| Country of Origin: | Taiwan |
