ATXMEGAB1-XPLD Atmel Eval Board Atxmega128B1 Lcd

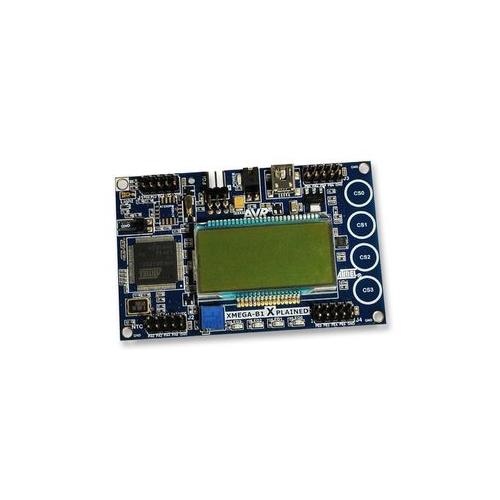

The ATXMEGAB1-XPLD is an evaluation board for Atmel AVR XMEGA with LCD. It features an ATxmega128B1 and additional components demonstrating the features of the device. The Atmel XMEGA-B1 Explained evaluation kit is a hardware platform for evaluating the Atmel ATxmega128B1 microcontroller. The AVR Explained kits are great platforms for early evaluation of the capabilities offered by the AVR microcontrollers. The XMEGAB1-Xplained contain four QTouch button sensors, LED's, analog sensors, a USB port, and segment LCD display. The AVR Explained expansion headers provide easy access to analog and digital I/O pins. The board is powered by the USB cable and equipped with the standard 10 pin JTAG header that connects to the full range of AVR debuggers.

• Atmel ATxmega128B1 microcontroller
• 4x40 transflective LCD module with backlight
• Transfer data over the USB full/low speed device interface
• Read a light sensor with the ADC
• Read a temperature sensor with the ADC
• Measure external voltage input with ADC
• Measure potentiometer voltage with ADC
• Read status of the 4 Atmel QTouch buttons from AT42QT1040 QTouch device
• 4 LED's to show status information
• Program the kit via USB bootloader or an Atmel programmer
