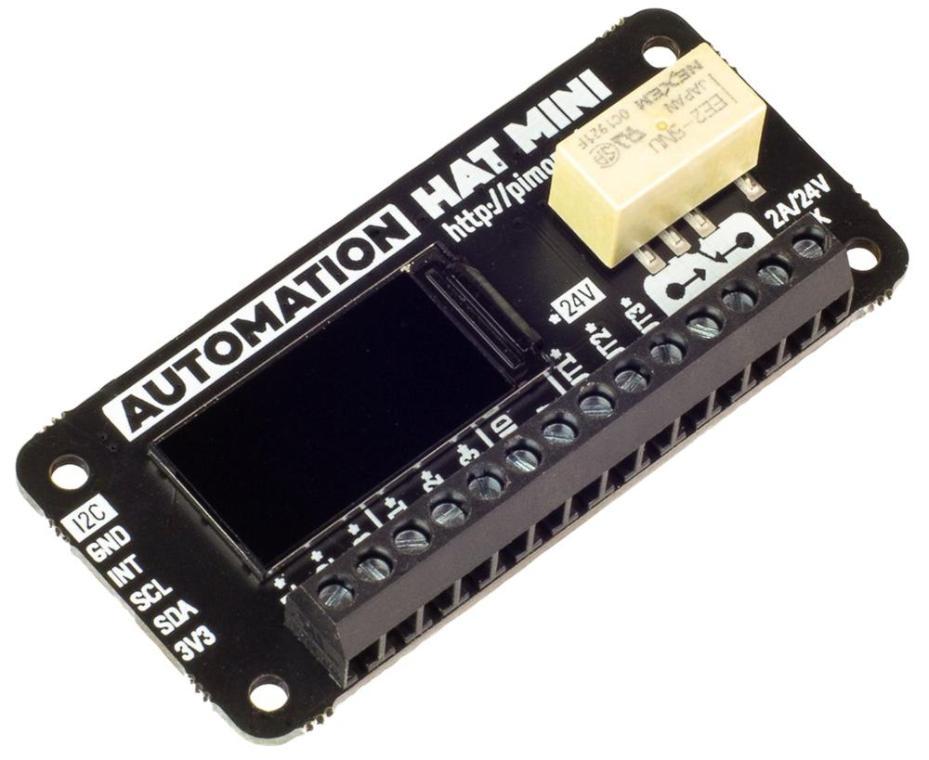

Automation HAT Mini Board for Raspberry Pi - PIM487
Automation HAT Mini Board for Raspberry Pi - PIM487
Regular price
£27.19 GBP
Regular price
Sale price
£27.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Automation HAT Mini is a great solution for monitoring and controlling low voltage (12-24V) systems in homes and cars. All the inputs and outputs are 24V tolerant and it features a full colour IPS display to provide status feedback on your system.
Features
- Full colour 0.96" IPS LCD display (160x80)
- 3x 12-bit Analogue inputs at0-24V (ADS1015)
- 3x 24V Tolerant buffered inputs
- 3x 24V Tolerant sinking inputs (outputs can sink a maximum 500mA total across the 3 outputs)
- 24V at2A Relay (NC & NO terminals)
- 3.5mm Screw terminals
- Additional breakout header on the underside for a Pimoroni breakout board
- Python software library available
- Mini HAT format board
- Solderless header is pre-attached
- Compatible with all Raspberry Pi models with 40-pin header
- Dimensions (HxWxD): 17x65x30mm
| Specifications | |
|---|---|
| For Use With | Raspberry Pi |
| Kit Contents | Automation HAT Mini Board |
| Product Contents: | Board only |
| Important Product Info: | Loads for the outputs should be switched on the ground side. The relay can tolerate up to 2A each and should be switched on the high side. |
| Important Product Warning: | Note: Do not use the Automation HAT to switch mains voltages. |
| Country of Origin: | Great Britain |
