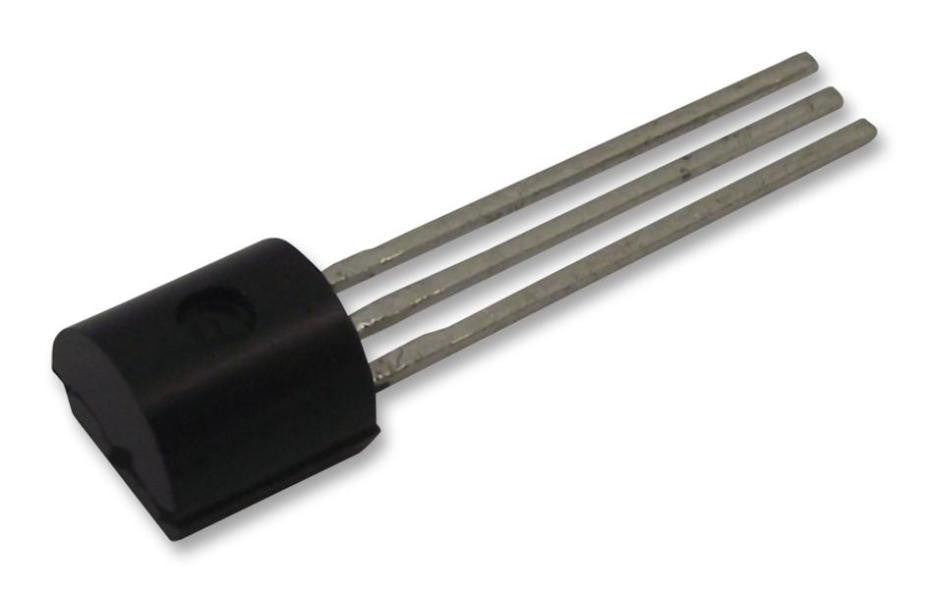

Bipolar (BJT) Single Transistor, NPN, 40V, 1A, 625mW, TO-226AA - PN2222ABU
Bipolar (BJT) Single Transistor, NPN, 40V, 1A, 625mW, TO-226AA - PN2222ABU
Regular price
£1.19 GBP
Regular price
Sale price
£1.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The PN2222ABU is a 40V NPN Bipolar (BJT) Single Transistor for use as a medium power amplifier and switch requiring collector currents up to 500mA. This product is general usage and suitable for many different applications.
Features
- 75V Collector to base voltage (VCBO)
- 6V Emitter to base voltage (VEBO)
- 83.3°C/W Thermal resistance, junction to case
- 200°C/W Thermal resistance, junction to ambient
- 60ns Fall time (TA = 25°C)
| Specifications | |
|---|---|
| Transistor Polarity | NPN |
| Collector Emitter Voltage V(br)ceo | 40V |
| DC Collector Current | 1A |
| Power Dissipation Pd | 625mW |
| Transistor Case Style | TO-226AA |
| Transistor Mounting | Through Hole |
| No. of Pins | 3Pins |
| Transition Frequency ft | 300MHz |
| DC Current Gain hFE | 35hFE |
| Operating Temperature Max | 150°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | South Korea |
