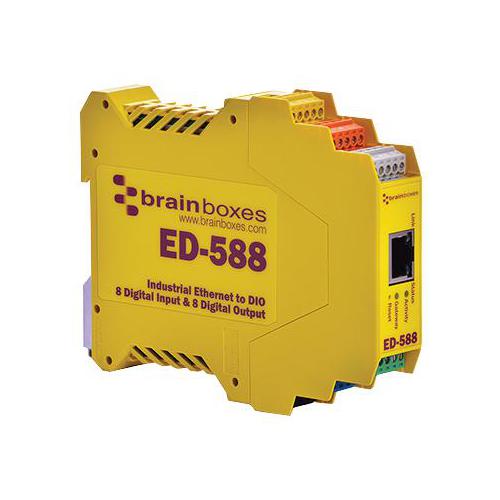

Brainboxes - ED-588 - Ethernet To 8-port Digital I/o & Rs485 Gateway
Brainboxes - ED-588 - Ethernet To 8-port Digital I/o & Rs485 Gateway
Regular price
£248.99 GBP
Regular price
Sale price
£248.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Ethernet to Digital I/O control module with 8 non-isolated digital input and 8 non-isolated digital output channels.
Product Info
- Drives high current and high voltage loads; ideal for factory floor process control and automation
- RS485 NuDam/ADAM compatible gateway
- Ethernet port for remote access and monitoring
- Removable colour coded terminal blocks for easy wiring and installation
- Web browser interface and Boost.IO COM port driver for non-Windows users
- Industry standard Modbus TCP Protocol and familiar ASCII command protocol
- IP-20 rated non-conducting polyamide case
- Wide range 5V to 30V DC Power input
- Wide operating temperature range (-30°C to +80°C, -22°F to +176°F) and storage temperature (-40°C to +85°C, -40°F to +185°F)
- Integrated DIN rail mounting with functional earth connection
| Details | |
|---|---|
| Product Contents: | Control module, software and quick start guide |
| Country of Origin: | Great Britain |
